Reglisse

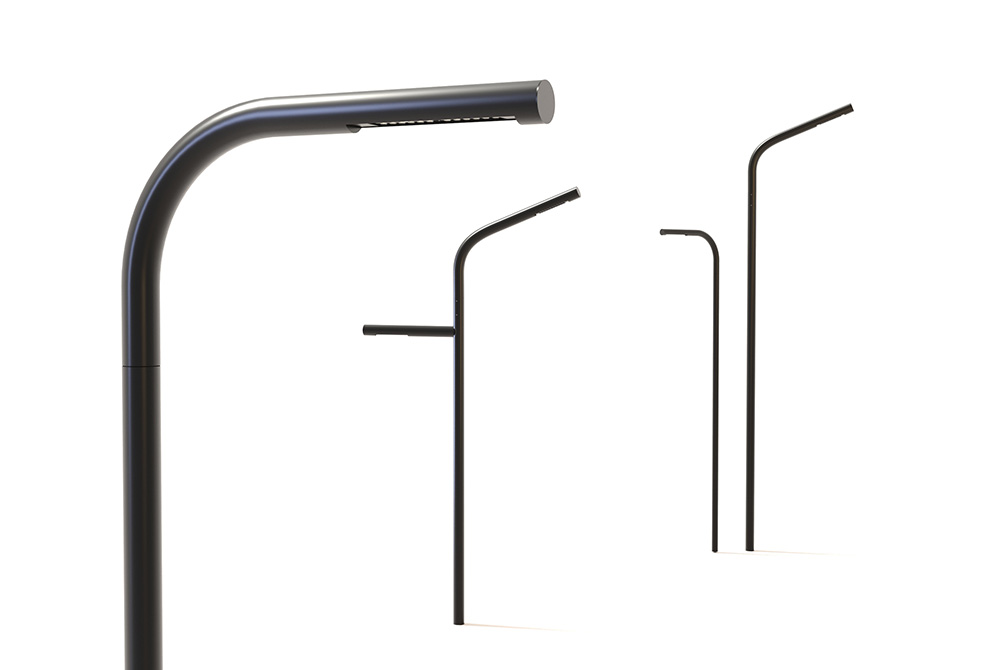

  • D_Reglisse1_jour

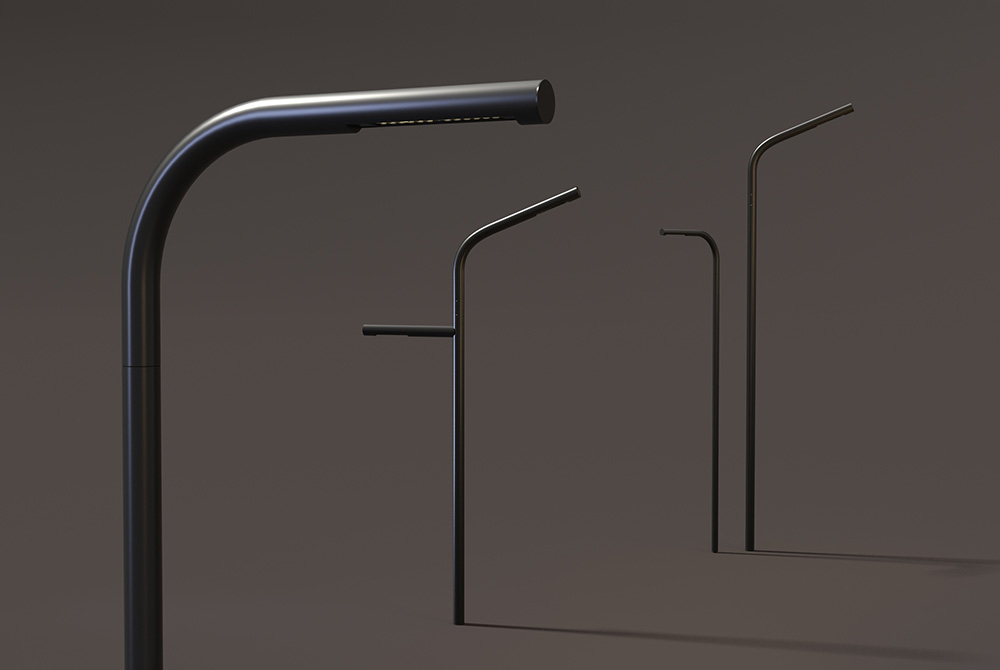

  • D_Reglisse1_nuit

Réglisse is a LED lighting structure with supple, slender forms. Equipped with LED luminaire, it will efficiently light any type of environments. The lamp head is in perfect continuity with the mast, made of the same aluminum section.

Download data sheet

Height 4 to 8 m (13′ 1 15⁄32″ to 26′ 2 31⁄32″)

Technical data

  • Exclusive aluminum profile, cylindrical, smooth
  • Mast profile: Lisse 100, Lisse 140
  • Profile dimension: ⌀ 100, 140 mm (⌀ 3 15/16″, 5 1/2″)
  • Access door manufactured in a specific aluminum profile. Interchangeable, flush. Opening depending on the profile dimension at 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw.
  • Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
  • Single, double or Technifonction (pedestrian lighting), in perfect harmony with the pole and manufactured in the same section, with a curved part
  • Number of arms: 1
  • Possible to add a pedestrian lighting (Technifonction)
  • Standard outreach: 1 – 1.20 m
  • Tilt: 0, 5, 10, 20
  • Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
  • Source: LED
  • Integrated LED luminaire, 12 LEDs lighting. Integrated LED driver and heat sink.
  • Module type: Dizeo
  • Luminaire dimension: 206 x 72 mm
  • Power: 12, 24
  • Outgoing flow: 1650-3260 lm
  • Color temperature: 2200, 2700, 3000, 4000 °K
  • CRI >70 (>80 possible)
  • Optic: Asymmetrical wide beam, Asymmetrical medium, Symmetrical
  • Protection: Ip65 / IK08
  • Class: 1 (2 possible)
  • Programmable, dimmable (DALI or 0-10 V) or not dimmable
