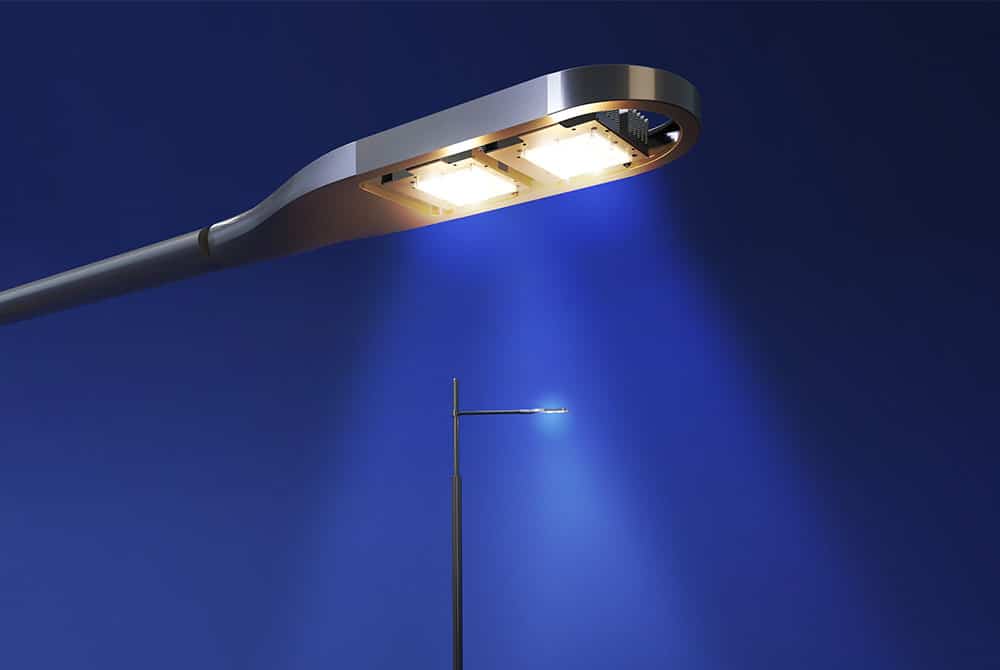

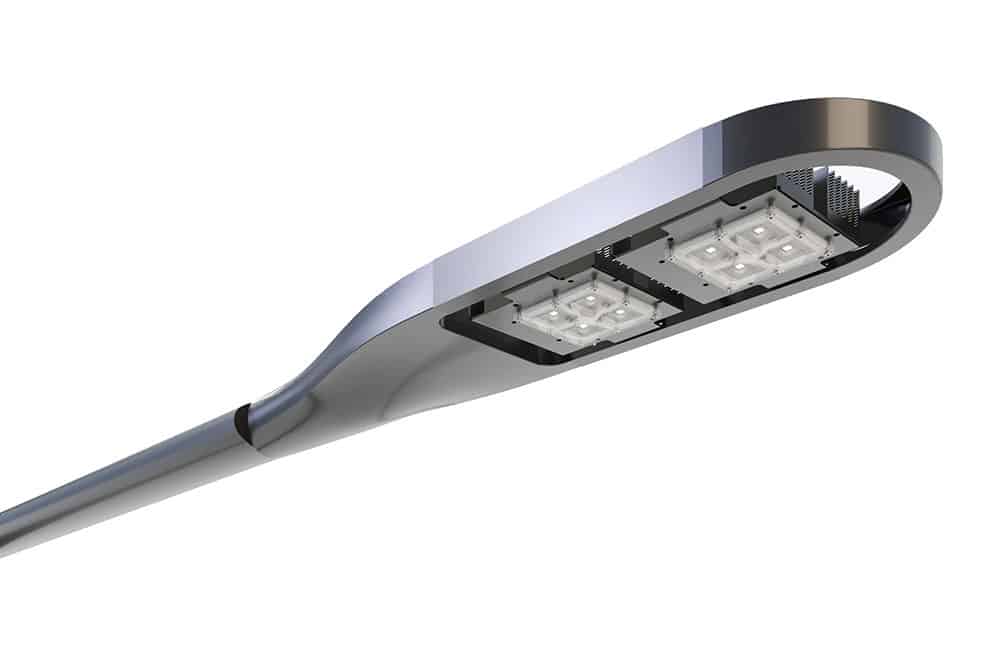

The E.L.F.E[Eco-designed, Lightweight, Flexible, Elegant]LED fixture in die-cast aluminum, adaptable to our entire range of lampposts, will fit perfectly into your pedestrian or street lighting projects.

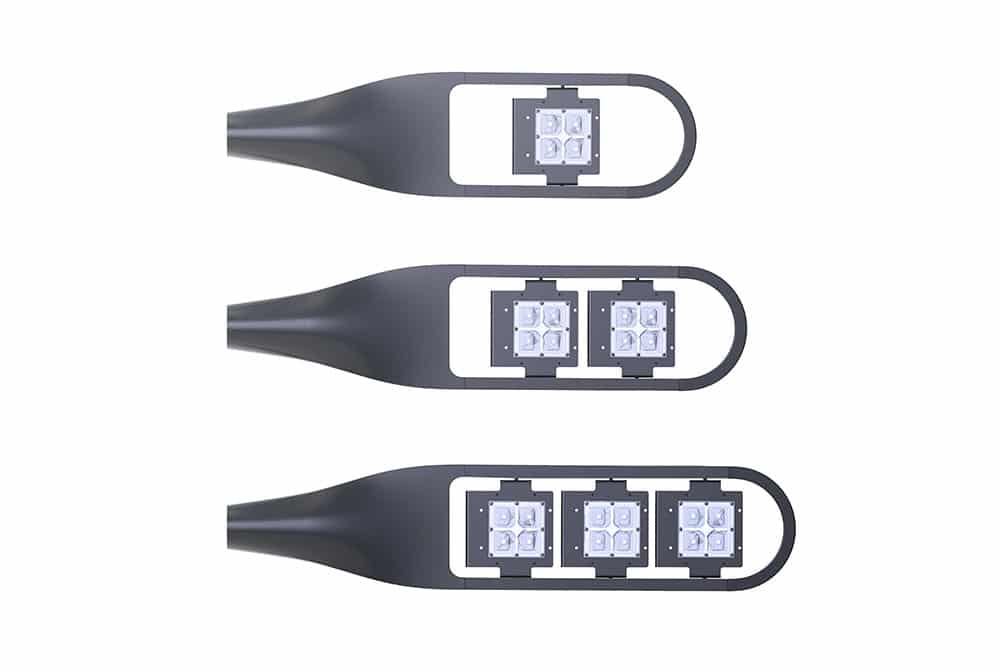

Its LED lighting, provided by 1, 2 or 3 Bômino modules, can be tilted independently, enabling to easily adjust the light to the desired areas and save energy thanks to its low power consumption. Available in 3 sizes: mini, medium and maxi, and for side or top mounting, its modularity will enable you to meet all your lighting project needs.
The finish of our fixtures can easily be matched to the associated lighting furniture: choose from more than 200 RAL colors and special finishes available (polyester powder coating), for a harmonious finish.
Download complete data sheet
Technical data
- Die-cast aluminium LED luminaire with integrated heat sink and LED driver, available in 3 versions:
– ELFE Mini : – ELFE Mini : 1 module
– ELFE Medium : 1 ou 2 module(s)
– ELFE Maxi : 3 modules
. Lighting modules can be adjusted independently of the luminaire. - Dimensions: Mini : 710 x 230 x 90 mm / Medium : 830 x 230 x 90 mm / Maxi : 850 x 230 x 90 mm
- Protection: IP 66 / IK 08
- Class: I(II possible)
- Power: 25 W, 50 W, 75 W
- Outgoing flow: 3250 lm, 6500 lm, 9750 lm
- Color temperature: 2200, 2700, 3000, 4000 °K
- CRI: >70 (80, 90 sur demande – upon request)
- ULOR: <1%
- Lifespan (L80B10): >108 000 h
- Driver: Pilotage DALI-2, 0-10 V (sur demande). Programmation horaire, Zhaga D4i, socket Zhaga / NEMA (sur demande – upon request)
- Number of LEDs: 8 leds (pour 1 module)
-
Bamboo
Eco-designed LED aluminum lighting structure for the ambient lighting of public spaces, suitable for any kind of urban environment. Height: from 3.5 to 5 m.
-
Marsanne
Versatile lamp post in aluminum for functional and road lighting, with adjustable height, arm(s) and outreach.
Height: from 5 to 12 m. -
Roussanne
Aluminum lamp post for functional lighting with simple or double head. Height: from 5 to 12 m.
-
Sémillon
Aluminum lamp post for functional lighting with simple or double head, with an oval pole. Height: from 5 to 9 m.
-
Marsanne (wall-Mounted)
Monobloc wall-mounted lighting systemmade of extruded aluminum, specially designed for ambient lighting.
Outreach: from 1 to 2 m. -
City Line
Aluminum light pole designed to provide functional lighting and highly versatile (pole profile, number and type of arms and pole heads).
Height: from 4 to 12 m. -
Roussanne (wall-mounted)
Aluminum wall-mounted lighting system for functional lighting. Height: 0,5 m, 1 m or 1,5 m.
-
Roussanne (Variation)
Lighting pole with single, double or quadruple open-work aluminum arm, designed for ambient or functional lighting. Height: from 5 to 12 m.
-
Technalinox
Aluminum round tapered poles range, produced in one piece, entirely weld-free. Height: from 3 to 12 m.
-
Techni-Tram
Aluminum pole whose patented design demonstrates originality, lightness and transparency. Height: from 5 to 12 m.
