KAREO² (LED module to integrate)

Adaptable to our entire range of lampposts, bollards and lighting columns, Kareo² LED fixture fits perfectly into your architectural, pedestrian or street lighting projects. Made of 16 LEDs, it will allow high performance, long-lasting lighting. Compact, it is easy to integrate.

Download complete data sheet

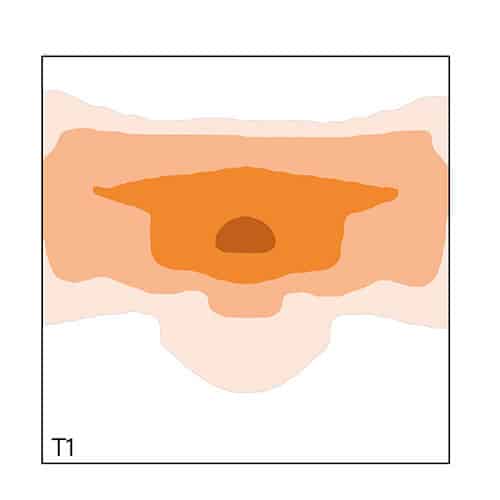

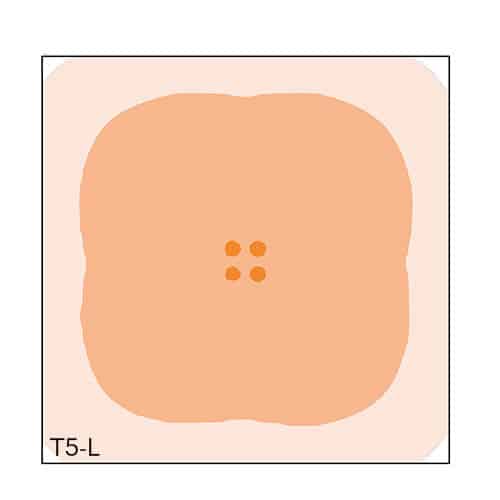

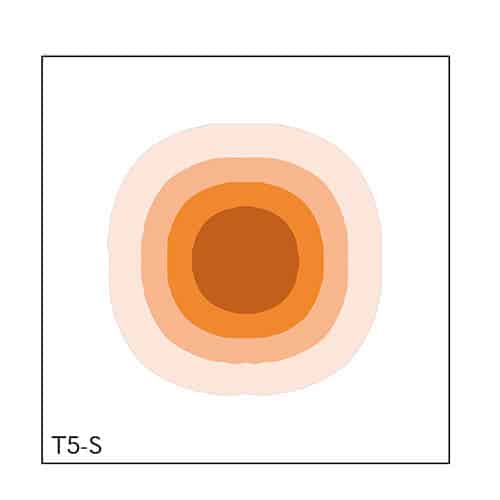

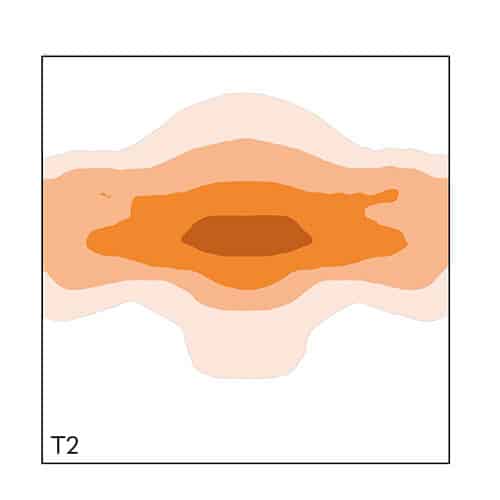

N.B.: Contact us to obtain the accurate photometrics for lighting columns and bollards with cut-out (Treille/Creille) – not available online.

Can be mounted on catenaries Download data sheet

Technical data

  • Aluminum integrable LED fixture with integrated heat sink and remote driver for easy maintenance. Karéo² is made of 16 LEDs with silicone optics for architectural, pedestrian and street lighting.
  • Dimensions: 90 x 90x 60 mm
  • Protection: IP 66 / IK 08
  • Class: I(II possible)
  • Power: 16 W, 33 W
  • Outgoing flow: 2385 lm, 4480 lm
  • Color temperature: 2200, 2700, 3000 °K
  • CRI: >70
  • ULOR: <1%
  • Lifespan (L80B10): >108 000 h
  • Driver: Pilotage DALI, 0-10 V (sur demande)
  • Number of LEDs: 16
  • Jeny

    LED lighting structure with triangular aluminum profile and 3 technical grooves allowing the easy set up of floodlights or accessories.
    Height: from 4 to 8 m.

  • Manseng Nano

    Aluminum lighting structure for functional and street lighting, with square profile (130 x 130 mm) integrating 4 technical groove for accessorization and mutualization.
    Height: from 4 to 12 m.

  • Manseng PM

    Aluminum lighting structure for functional and street lighting, with square profile (180 x 180 mm) integrating 2 technical groove for accessorization and mutualization.
    Height: from 4 to 12 m.

  • Niagara (bollards)

    Aluminum LED lighting bollard for ambient lighting, with cylindrical profile.
    Height: from 0.8 to 1.2 m.

  • Niagara

    Aluminum LED lighting column for ambient lighting, with cylindrical profile.
    Height: from 3 to 5 m.

  • INTI Design

    Autonomous lighting structure with perfectly integrated solar panels and a presence sensor to adapt the light power to the uses.
    Height: from 4 to 8 m.

  • Lilio

    Light pole with fretted aluminum structure, which can integrate outdoor-rated LIFI technology.
    Height: from 3.5 to 8 m.

  • Creille

    Fretted aluminum illuminating column with square-concave profile and entirely customizable cut-out, ideal for ambient lighting.
    Height: from 3.5 to 4.8 m.

  • Creille (bollard)

    Customizable fretted aluminum illuminating bollard with square-concave profile, perfect for ambient and decorative lighting.
    Height: from 1 to 1.4 m.

  • Mikado Nano

    Monobloc aluminum lamp post with iconic trapeze-shape profile (134 x 114 x 86 mm) for ambiant lighting.
    Height: from 3,5 à 5 m.

  • Creille that grows

    Fretted aluminum illuminating column which integrates vegetation growing inside the lighting furniture.
    Height: from 3.5 to 4,8 m.

  • Lamp

    Aluminum light pole with open-work cone, designed for ambient and decorative lighting.
    Height: from 3.5 to 4.5 m.

  • Shiraz K Nano

    Aluminum lamp post for functional and roadway lighting. Monobloc, with rectangle shape profile (158 x 95 mm). Equipped with technical grooves, it can be easily accessorizable.
    Height: from 3.5 to 5 m.

  • Shiraz Nano

    Functional aluminum lamp post, offering a refined contemporary shape, ideal for ambiant lighting. Monobloc, with rectangle shape profile (158 x 950 mm).
    Height: from 3.5 à 5 m.

  • Shiraz Nano (bollard)

    Monobloc aluminum bollard for ambient lighting, perfect for pedestrian roadways. Rectangle shape profile (158 x 95 mm).
    Height: from 0.8 to 1.20 m.

  • Treille

    Illuminating column with fretted aluminum structure, entirely customizable, trapeze-shaped, perfect for ambient lighting in public spaces.
    Height: from 3.5 to 4.8 m.

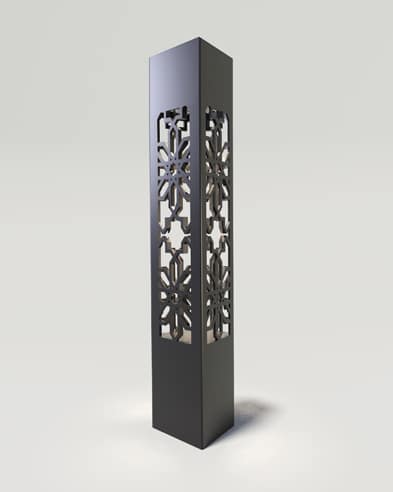

  • Treille (bollard)

    Illuminating column with fretted aluminum structure, entirely customizable, trapeze-shaped, perfect for ambient lighting in public spaces.
    Height: from 1 to 1.2 m.

  • Zinfandel

    Aluminum lighting structure for functional lighting, equipped with technical grooves to facilitate accessorization.
    Height: from 4 to 8 m.

  • Manseng Nano (bollard)

    Aluminum LED lighting bollard for ambient lighting, with square profile.
    Height: from 0.8 to 1.2 m.

  • Creille GM

    Fretted aluminum illuminating column with square-concave profile and entirely customizable cut-out, ideal for ambient lighting of walkways or park.
    Height: from 3.5 to 6 m.

  • Shiraz K Nano (bollard)

    Monobloc aluminum bollard with rectangle-shape profile (158 x 95 mm) with grooves.
    Height: from 0.8 to 1.20 m.

  • Tannat

    Aluminum lamp post designed for functional and decorative ligthting. Rectangle shape profile (200 x 120 mm) with integrated technical grooves to facilitate accessorization.
    Height: from 4.5 to 8 m.

  • Zinfandel (wall-mounted)

    Wall-mounted aluminum lighting system.
    Outreach: 1 m.
