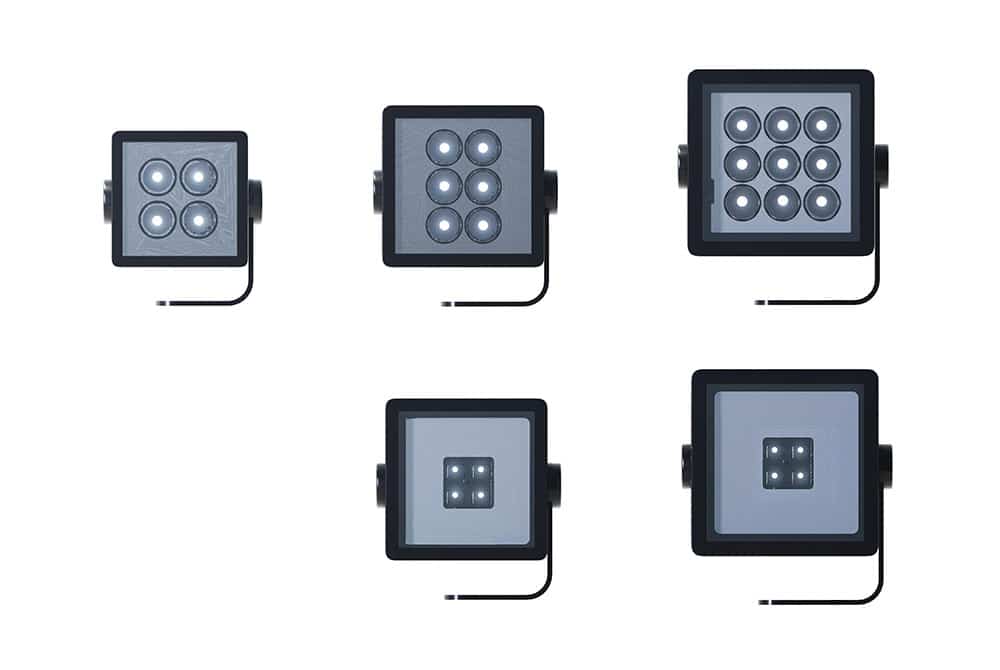

PAUL (S, M, L floodlights)

Sober and elegant, our square Paul floodlights, compatible with our entire range of our poles, lampposts and lighting columns, are available to accompany all your architectural lighting projects. Available in 3 different sizes et offering a wide color pannel (white, dynamic white and RGBW.).

Available accessories: Snoot, anti-glare grid, honey comb.

The finish of our floodlights can easily be matched to the associated lighting furniture: choose from more than 200 RAL colors and special finishes available (polyester powder coating), for a harmonious finish.

Download Paul and its accessories complete data sheet
Download RGBW data sheet

Can be mounted on catenaries Download data sheet

Technical data

  • Range of aluminum square-shape floodlights, with mounting on lyre or arm, for architectural and street lighting, available in 3 differents sizes and offering a large color pannel (whites, dynamic white, RGBW).
  • Dimensions: S, M, L
  • Protection: IP 65 / IK 08
  • Class: I(II possible)
  • Power: 18 W, 24 W, 27 W, 37 W
  • Outgoing flow: 1500 lm, 2300 lm, 2970 lm, 3100 lm, 4165 lm
  • Color temperature: 2200, 2700, 3000 °K / Dynamic White (2200 – 3000 °K), RGB White
  • CRI: >70
  • ULOR: <1%
  • Lifespan (L80B10): >100 000 h
  • Driver: Pilotage DALI, DMX (sur demande)
  • Number of LEDs: 16, 24 ou 36
  • Jeny

    LED lighting structure with triangular aluminum profile and 3 technical grooves allowing the easy set up of floodlights or accessories.
    Height: from 4 to 8 m.

  • Manseng Nano

    Aluminum lighting structure for functional and street lighting, with square profile (130 x 130 mm) integrating 4 technical groove for accessorization and mutualization.
    Height: from 4 to 12 m.

  • Manseng PM

    Aluminum lighting structure for functional and street lighting, with square profile (180 x 180 mm) integrating 2 technical groove for accessorization and mutualization.
    Height: from 4 to 12 m.

  • Aiguille

    Tapered aluminum pole for floodlight mounting, perfect for architectural and event lighting.
    Heights: from 4.2 to 13.9 m.

  • Creille

    Fretted aluminum illuminating column with square-concave profile and entirely customizable cut-out, ideal for ambient lighting.
    Height: from 3.5 to 4.8 m.

  • Creille that grows

    Fretted aluminum illuminating column which integrates vegetation growing inside the lighting furniture.
    Height: from 3.5 to 4,8 m.

  • Structure K

    Aluminum poles range equipped with technical grooves to allow the positionning of light fixtures or accessories, for dimensional or scenographic lighting.
    Height: from 4 to 20 m.
    Profile dimensions: K120, K140, K160, K200, K250, K320

  • Structure K (high)

    Aluminum poles range equipped with technical grooves to allow the positionning of light fixtures or accessories, for dimensional or scenographic lighting.
    Height: from 10 to 20 m.

  • Treille

    Illuminating column with fretted aluminum structure, entirely customizable, trapeze-shaped, perfect for ambient lighting in public spaces.
    Height: from 3.5 to 4.8 m.

  • Creille GM

    Fretted aluminum illuminating column with square-concave profile and entirely customizable cut-out, ideal for ambient lighting of walkways or park.
    Height: from 3.5 to 6 m.

  • Specimen

    Aluminum lighting structure for dimensional or scenographic lighting with a strong “industrial” identity.
    Height: from 8 to 12 m.

  • TZ

    Aluminum lighting pole, trapeze-shaped, with niche(s) for floodlight, ideal for exclusive and scenographic lighting requirements.
    Height: from 9 to 12 m.

  • Bipode

    Aluminum structure designed for dimensional and scenographic lighting, made of 2 connected poles.
    Height: from 9 to 14 m.

  • Bermude

    Aluminum pole designed for dimensional and scenographic lighting. Provided with functionnal external grooves to fix floodlights, equipment and signposting.
    Height: from 5 to 8 m.

  • Octave

    Oval aluminum light pole designed for dimensional and scenographic lighting, with 6 technical grooves to fix lighting fixtures or accessories.
    Height: from 3.5 to 8 m.

  • Octave +

    Oval aluminum light pole designed for dimensional and scenographic lighting, with 4 technical grooves to fix lighting fixtures or accessories.
    Height: from 6 to 12 m.
