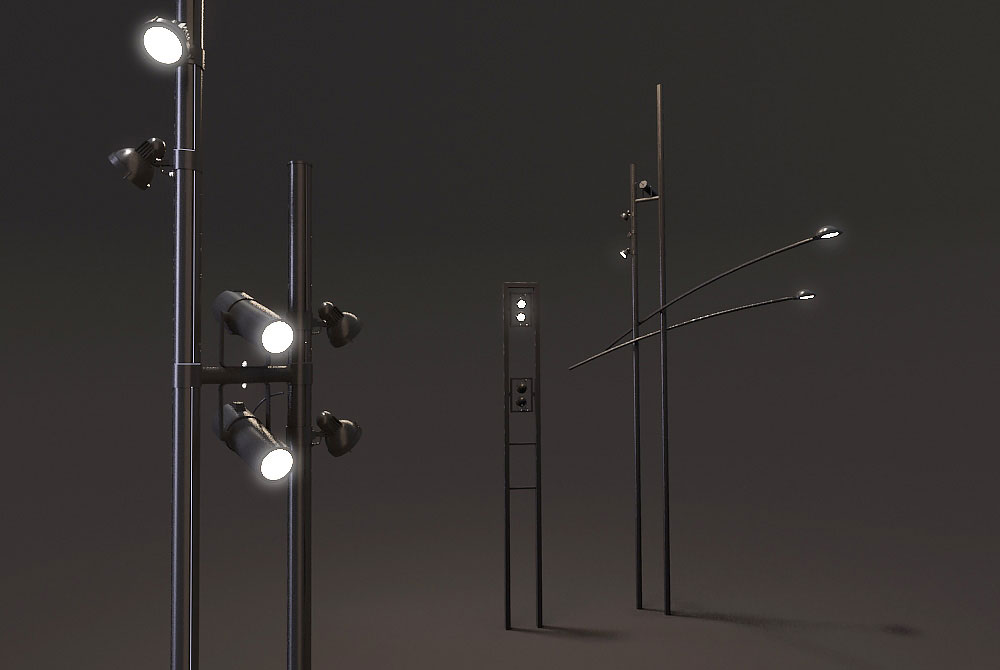

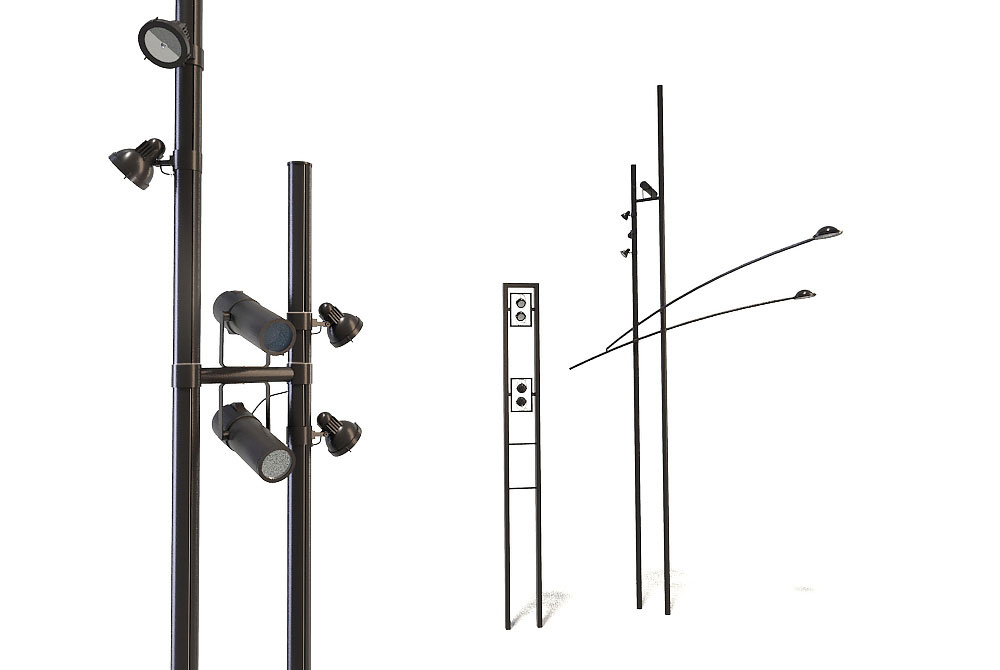

Specially designed for event and scenographic lighting, the Bipode is an aluminum structure made of 2 connected poles.
Height from 9 to 14 m (from 29′ 6 21/64″ to 45′ 11 3/16″ )
Technical data
- Aluminum structure made of 2 connected poles. On selected poles: external technical grooves to facilitate accessorization (signage, bin, camera…). Different pole diameters available. Possibility to adapt extra long arms.
- Mast profile: Shiraz, Structure C, Structure C+, Structure K 140, Structure K 160, Structure K 200, Structure K 250, Structure K 320
- One or two access door(s) made from a specific aluminum profile. Flush, interchangeable. Opening size depends on the section, located at 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw.
- Baseplate made of die-cast aluminum*. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications.*Except for Structure K320 (pole burried in concrete).
- Single, double. Die-cast aluminum modular rings connecting the Ø100mm extension pieces and the floodlight support.
- Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
- Compatible with any kind of projectors. Mounting on a plate, a frame, a rotative ring or on the technical grooves with the help of a mounting bracket.
Linked project(s)
Jean Drapeau Park, Montréal
Jean Béliveau square, Quebec
Linked accessory(ies)
Universal mounting bracket for projectors
