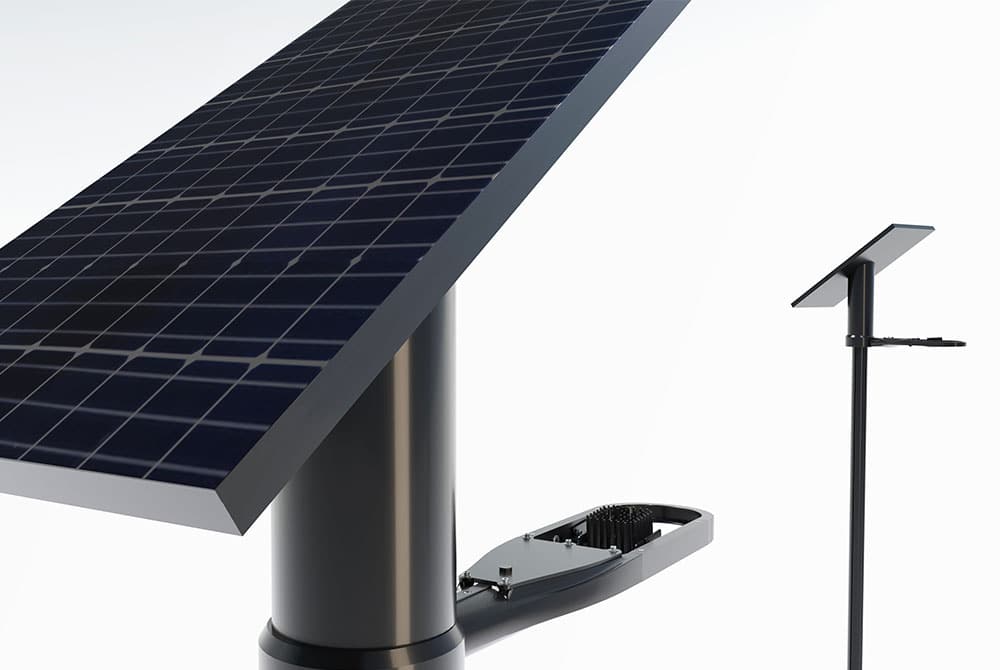

A high-performance “all-terrain” offering, INTI Basic combines a classic, robust solar module with aluminum lighting poles and Technilum floodlights, as well as a presence sensor to adapt light output to usage.
Compatible with most Technilum lighting poles, which are themselves made of 75% recycled aluminum, INTI Basic poles offer clean furniture and energy, for guaranteed lighting 365 nights a year.
Height from 3 to 7 m (from 9′ 10 7/64″ to 22′ 11 37/64″)
- . Ø 120 : extruded aluminum profile
. K120 : Exclusive aluminum profile with internal functional structure and external technical grooves to facilitate accessorization
- Mast profile: Structure K 120, Lisse 120
- Profile dimension: Ø120 mm (4 23/32″)
- Flush and interchangeable access door. Opening 500×76 mm (19 11/16″ x 2 63/64″) at 600 mm (23 5/8″) from the base Locked with tamper-proof screw. Location for the electronic card
- Made of die-cast aluminum baseplate. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts.
Dimensions according to height.
Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications

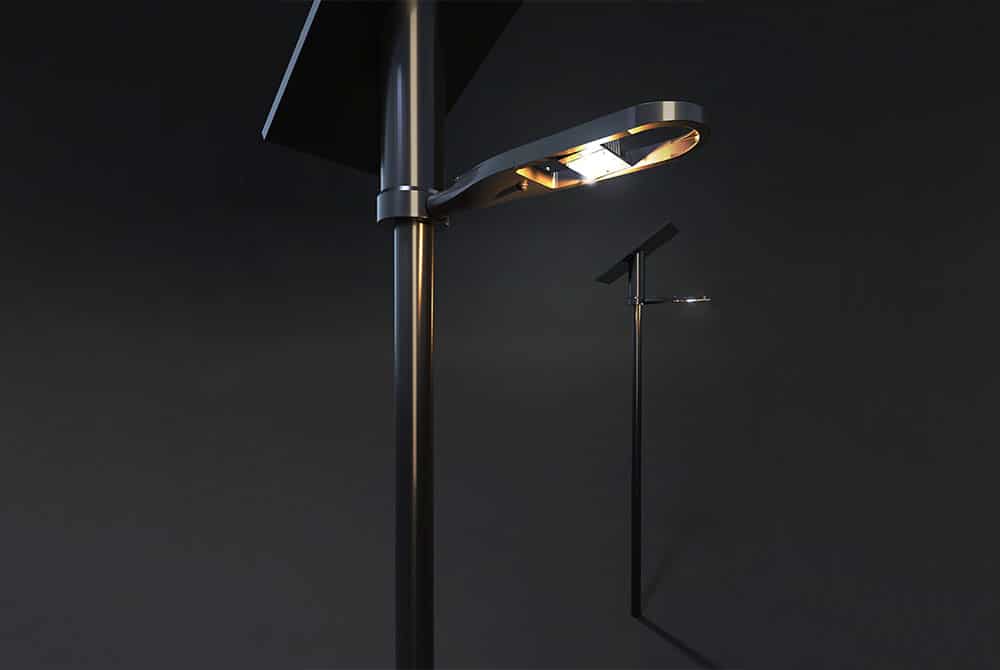

- Masthead equipped with an E.L.F.E luminaire.
Technical elements on pole top: . Solar panel: 2 Models: Size S25, size M25 – Monocrystalline silicon 100Wp (S) / 200Wp (M) – Pre-mounted and pre-wired on frame – Lifetime greater than 25 years – Tilt 55° – 360° rotatable independently of the luminaire
. Battery (made in France) : NiMh technology, RoHS recyclable > 98% – Capacity 240 Wh (S) / 480 Wh (M) – Lifetime > 10 years – Operating temperature (charge and discharge) from -40°C to +70°C – Pre-mounted and pre-wired on chassis, easy access for maintenance – Integrated BMS (battery management system) managing charge, discharge, SOC (state of charge) and SOH (state of health) based on proprietary algorithm
. Electronic board: Lowering of lighting without interruption of service in cloudy periods – IR wide angle motion detection – On-board clock + twilight detection – Configurable lighting profile (USB)
As each project is unique, the dimensioning is studied on demand according to your needs.
- Polyester powder coating, RAL colors. Natural anodization (20 microns)
