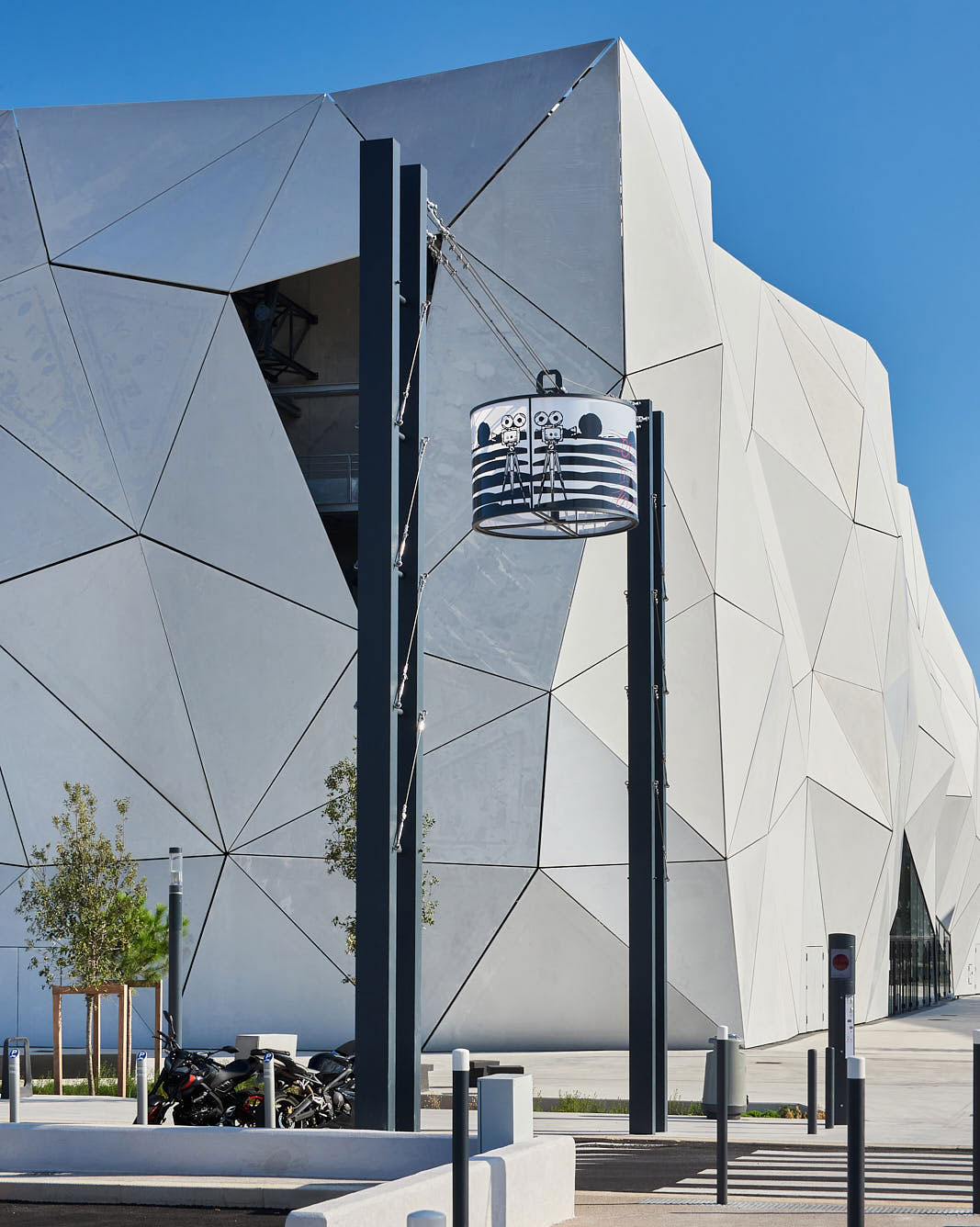

Multipode / Catenary is a system designed to accommodate catenary cables & catenary mounted fixtures. Each extremity is made of 1 or 2 poles mechanically connected to which 316L stainless steel wires are mounted to support catenary fixtures or festoon lighting. Intermediary poles can be added to support the catenary cables depending on the design of the system.
Height from 4 to 6 m (from 13′ 1 31/64″ to 19′ 8 7/32″)
Technical data
- Made of exclusive aluminum profile with internal structure. Depending on the selected pole: external decorative grooves or functional grooves to facilitate accessorization (signage, bin, camera…).
- Mast profile: Octave, Structure C, Structure K 200, Structure K 250, Structure K 320
- Profile dimension: Ø160, Ø200, Ø250, Ø320 mm. Octave : 232,5 x 175 mm (9 1/8″ x 6 7/8″)
- Access door available upon request.
- Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
- Catenary systems made of 1 or more stainless steel cables (Ø 6mm). Cables attached to the pole through stainless steel eyehooks and turnbuckle for tension adjustment. Luminaires mounted on the catenary cables with mounting accessories provided by the luminaire manufacturer.
- Possible to add a pedestrian lighting (Technifonction)
- Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
- PAULETTE (S, M, L, XL floodlights)
18 W, 24 W, 27 W, 37 W, 50 W ou 66W.
1500 lm, 2300 lm, 2970 lm, 3100 lm, 4165 lm, 4200 lm, 8050 lm
2200, 2700, 3000 °K / Dynamic White (2200 – 3000 °K), RGB White - MAGIC™ (LED fixture to integrate)
35 W.
3591 lm
2200, 2700, 3000 °K - DIZEO™ (LED module to integrate)
12 W, 24 W.
1830 lm, 3360 lm
2200, 2700, 3000 °K
