Shiraz GM

  • D_Shiraz-GM-jour
  • D_Shiraz-GM-nuit

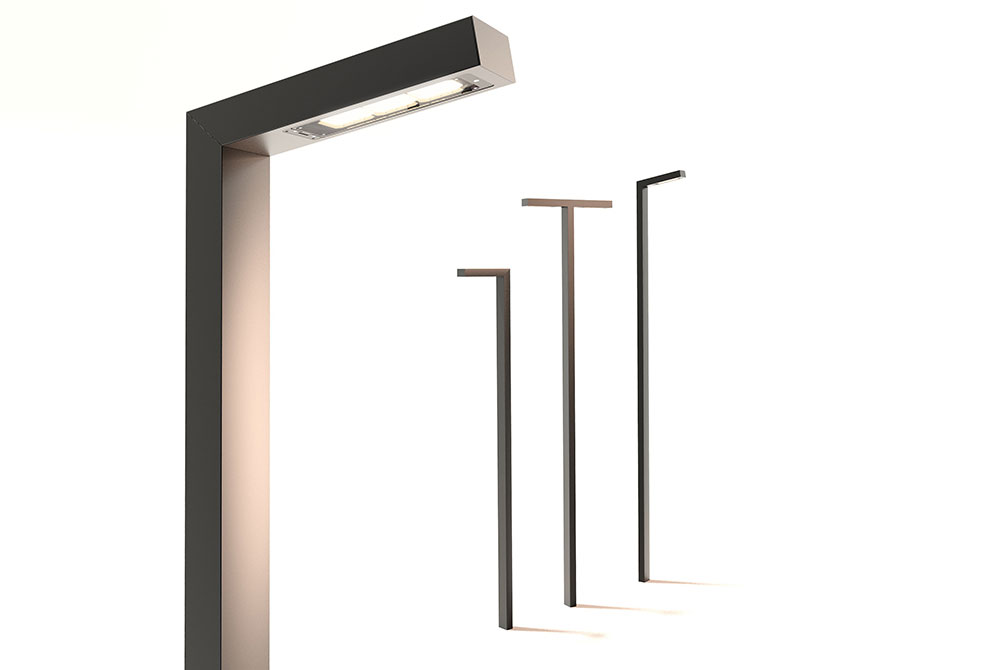

Shiraz GM benefits from the contemporary and refined design that made the success of Shiraz product line. It comes in various heights to perfectly fit in any kind of urban environment. Equipped with LEDs, it contributes to reduce environmental footprint thanks to its extended life-span, reduced energy consumption and easy maintenance.

Height from 6 to 10 m (from 19’8 7/32″ to 32’9 11/16″)

Technical data

  • Exclusive rectangular aluminum profile with functional internal structure.
  • Mast profile: Shiraz GM
  • Profile dimension: 250 x 150 mm (9 13/16 x 5 15/16)
  • Access door made from a specific aluminum profile. Flush, interchangeable. Opening 500×128 mm (19 11/16″ x 5 1/16″) at 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw.
  • Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
  • Bracket made in the same profile as the pole offering perfect harmony. Open work underneath the arm to fit a specific luminaire. Simple or double mast head.
  • Number of arms: 1-4
  • Possible to add a pedestrian lighting (Technifonction)
  • Standard outreach: 1 m (or 3′ 3 3/8″)
  • Tilt: 0°-20°
  • Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
  • Source: LED
  • LED luminaire fitted in the arm. Body made of die-cast aluminum, integrated LED driver and heat sink. Extra clear flat glass. 48 to 72 LEDs lighting.
  • Module type: Tempranillo
  • Luminaire dimension: 670x180x100 mm (26 3/8″ x 7 1/16″ x 3 15/16″)
  • Power: 48 W, 72 W, 96 W
  • Outgoing flow: 5280 – 10630 lm
  • Lighting efficiency: 110 lm/W
  • Color temperature: 2200K, 2700K, 3000 K, 4000 K
  • CRI >70 (>80 possible)
  • Optic: Asymmetrical wide beam, Asymmetrical
  • Protection: IP 65 / IK 08
  • Class: 1 (2 possible)
  • Programmable, dimmable (DALI or 0-10 V) or not dimmable
  • Power supply: 120-277 V
  • DEL intensity: 350 – 440 mA
