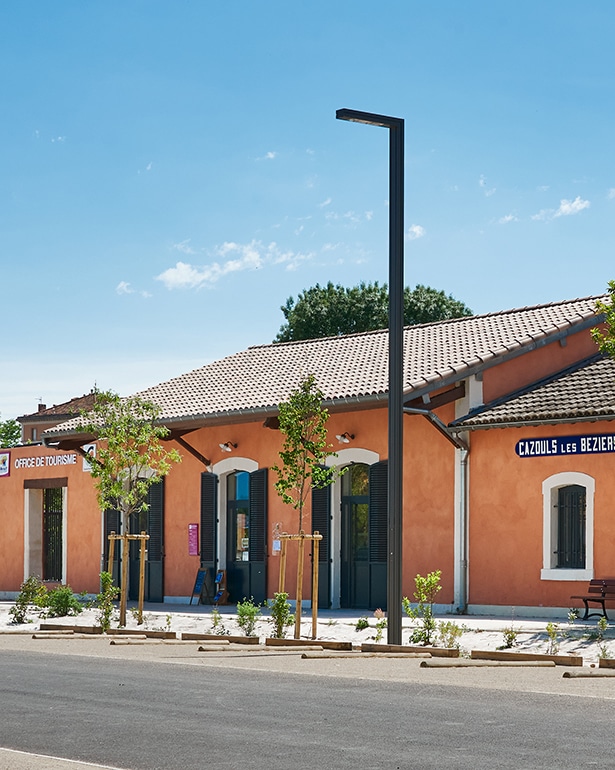

The shape of Shiraz K model, definitely contemporary, has made its success. Shiraz K benefits from the exclusive and patented City Module® concept and can be adjusted to different heights, perfect for roadway lighting. The technichal grooves integrated to its structure make it easier to accessorize.Download data sheet
Height from 4 to 8 m (from 13′ 1 31/64 to 26′ 2 61/64″)
- exclusive rectangular aluminum profile with functional internal structure. 6 external functional grooves to facilitate accessorization (signage, bin, camera…).
- Mast profile: Shiraz K
- Profile dimension: 200 x 120 mm (7 7/8″ x 4 3/4″)
- Access door made from a specific aluminum profile. Flush, interchangeable. Opening 500×90 mm (19 11/16″ x 3 9/16″) at 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw.
- Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
- Bracket made in the same profile as the pole offering perfect harmony. Open work underneath the arm to fit a specific luminaire. Simple or double mast head.
- Number of arms: 1 à 4
- Possible to add a pedestrian lighting (Technifonction)
- Tilt: 0°-20°
- Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
- Source: LED
- LED luminaire fitted in the arm. Body made of die-cast aluminum, integrated LED driver and heat sink. Extra clear flat glass. 48 to 72 LEDs lighting.
- Module type: Tempranillo
- Luminaire dimension: 670x180x100 mm (26 3/8″ x 7 1/16″ x 3 15/16″)
- Power: 48 W, 72 W, 96 W
- Outgoing flow: 5280 – 10630 lm
- Lighting efficiency: 110 lm/W
- Color temperature: 3000 K, 4000 K
- CRI >70 (>80 possible)
- Optic: Asymmetrical wide beam, Asymmetrical
- Protection: IP 65 / IK 08
- Class: 1 (2 possible)
- Programmable, dimmable (DALI or 0-10 V) or not dimmable
- Power supply: 120-277 V
- DEL intensity: 350 – 440 mA
Download our documents
Technilum’s universal mounting bracket combines discretion and flexibility. Adaptable to all kind of floodlights, it mounts easily and offers very precise beam angle adjustment capabilities thanks to its +/-100° rotating head. It is suitable with Technilum’s mast range equiped with technical groves.
