Structure K (high)

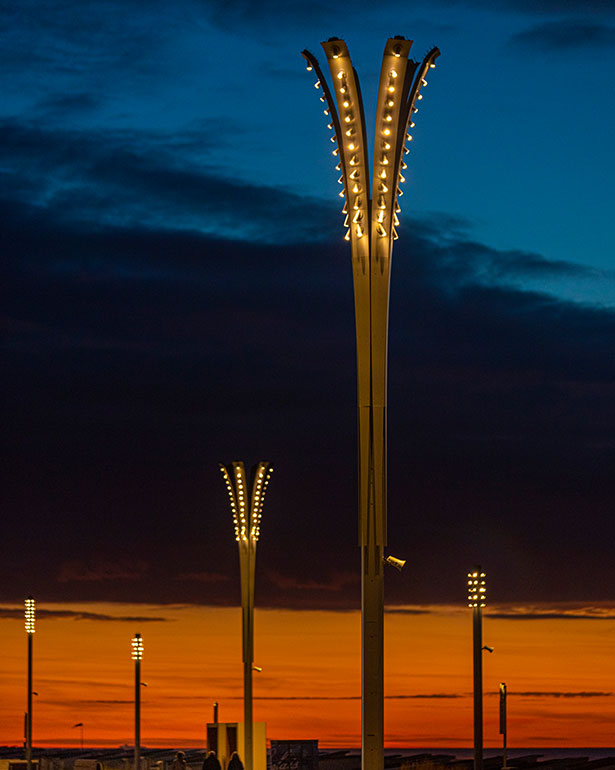

Structure K family of poles made of extruded aluminum can reach up 20 meters. They integrate technical grooves to fix any kind of light fixture or any accessories (signage, bins, camera…), and adjust them precisely and easily in height. Structure K poles are made of extruded aluminum (City Module Concept), entirely weld-free, combining aesthetics and resistance.

Download data sheet

Height from 10 to 20 m (from 32′ 9 45/64″ to 65′ 7 13/32″)

Technical data

  • Exclusive aluminum profile with internal structure. 4 external functionnal grooves to facilitate accessorization (fixtures, signage, bin, camera…).. Constant tubular section.
  • Mast profile: Structure K 250, Structure K 320
  • Profile dimension: Ø250,Ø320 mm (9′ 13/16″, 12 5/8″)
  • Access door made from a specific aluminum profile. Flush, interchangeable.K250 & K320 opening 500×112 mm (19 11/16″ x 4 7/16″) at 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw.
  • Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. K320: no baseplate / pole burried in a concrete base of 1 m depth.
    Download here the full specifications
  • Needle, Palino or conical extension piece available at the top of the pole.
    Possible to close the pole with lighting system made of Altuglas slats piling interspersed with part out aluminum sheets.
    Possible to easily fix projectors on the mast thanks to Technilum’s universal mounting bracket.

  • Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
  • PAUL (S, M, L floodlights)

    18 W, 24 W, 27 W, 37 W.
    1500 lm, 2300 lm, 2970 lm, 3100 lm, 4165 lm
    2200, 2700, 3000 °K / Dynamic White (2200 – 3000 °K), RGB White

  • PAULETTE (S, M, L, XL floodlights)

    18 W, 24 W, 27 W, 37 W, 50 W ou 66W.
    1500 lm, 2300 lm, 2970 lm, 3100 lm, 4165 lm, 4200 lm, 8050 lm
    2200, 2700, 3000 °K / Dynamic White (2200 – 3000 °K), RGB White
