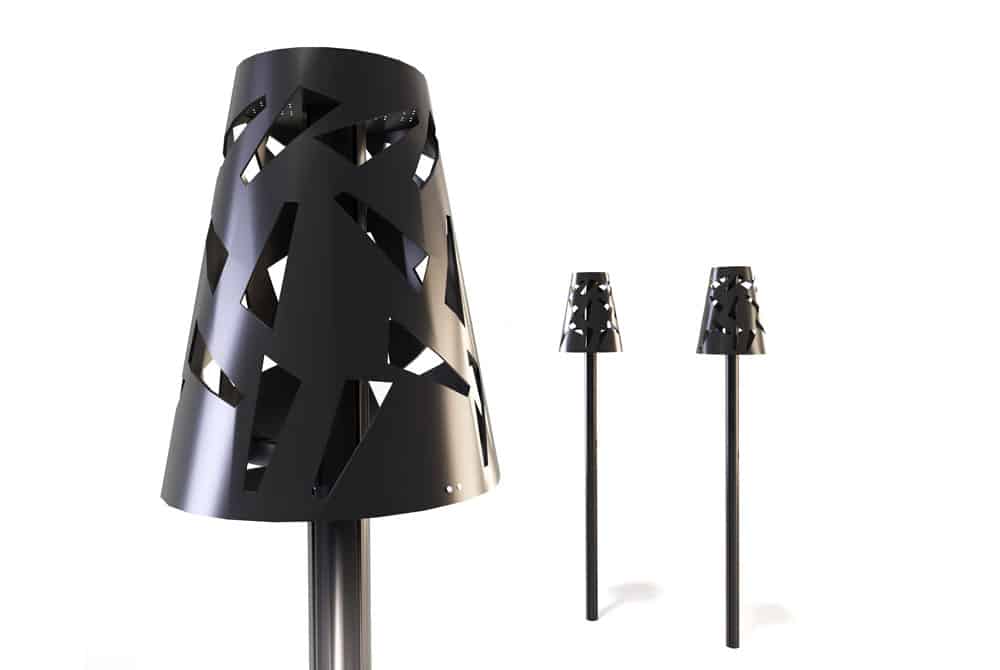

• D_Lamp_jour

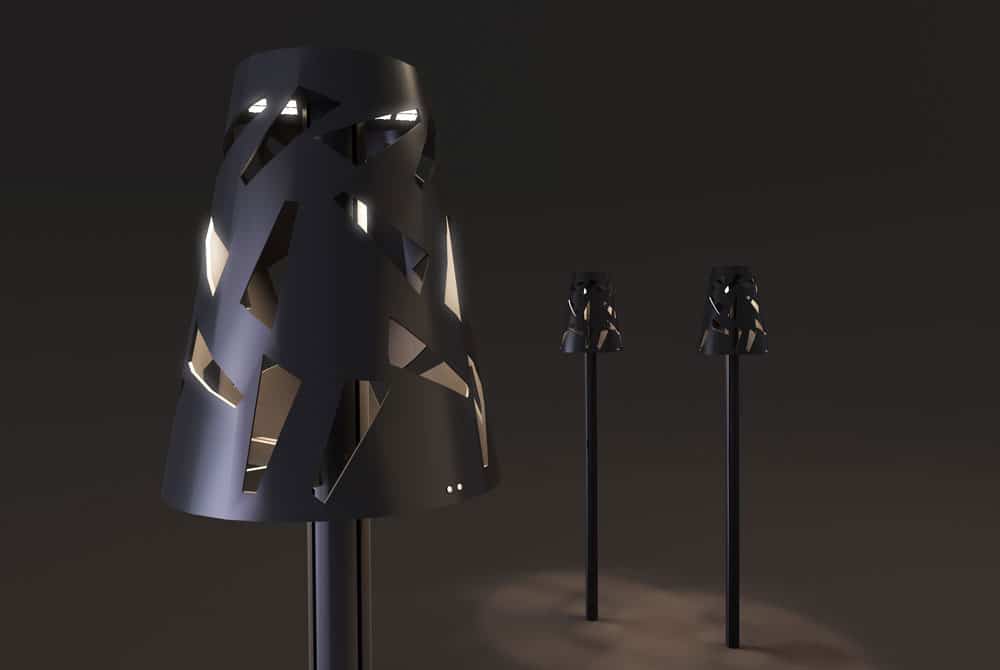

  • D_Lamp_nuit

The Lamp model jazz up exterior lighting thanks to its classy “retro-contemporaneous” silhouette. Its aluminium open-work cone allows a soft ambient lighting of public spaces. The technical grooves integrated to the mast facilitates the set up of signage or other accesories.

Download data sheet

Height from 3.5 to 4.5 m (from 11′ 5 51/64″ to 14′ 9 11/64″)

Technical data

  • Exclusive aluminum profile with internal structure. External technical grooves to facilitate accessorization (signage, bin, camera…).
  • Mast profile: Structure C, Etoile
  • Profile dimension: Ø140 mm (5 1/2″ )
  • Access door made from a specific aluminum profile. Flush, interchangeable. Pole opening with compensating side reinforcements. Opening 500×90 mm (19 11/16″ x 3 9/16″) at 600 mm (23 5/8″) from the base (other height on demand).
  • Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
  • Open-work cone made of cut out and formed aluminum sheet (Ø750 mm base, Ø 415 mm head, height 1m). Framework made of a base section in die-cast aluminum and 3 vertical posts in aluminum logs Ø 25 mm.
  • Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
  • Source: LED
  • “Contraste” refractor: piling of Altuglass slats protected by anti-UV sanded glass. External covering in extruded Altuglass, Ø 200 mm, 5 mm thick. Apex access disc in aluminum with an internal reflector in polished stainless steel.
  • Module type: Kareo
  • Power: 16 W, 33 W
  • Outgoing flow: 2170 – 4380 lm
  • Lighting efficiency: 136 – 141 lm/W
  • Color temperature: 3000 K, 4000 K
  • CRI >70 (>80 possible)
  • Optic: Symmetrical, Asymmetrical
  • Protection: IP 66 / IK 05
  • Operating temperature: -20° C / +50°C (-4°F / 122°F)
  • Class: 1 (2 possible)
  • Programmable, dimmable (DALI or 0-10 V) or not dimmable
  • Power supply: 220 V
  • DEL intensity: 350, 700 mA
