MAGIC™ (LED fixture to integrate)

Integrated into a Ceramic, Nerello or Rovello envelope, the Magic™ LED fixture can be adapted to our entire range of lampposts. It is particularly suitable for pedestrian or ambient lighting and offers visual comfort to users.

Download complete data sheet

Can be mounted on catenariesDownload data sheet

Technical data

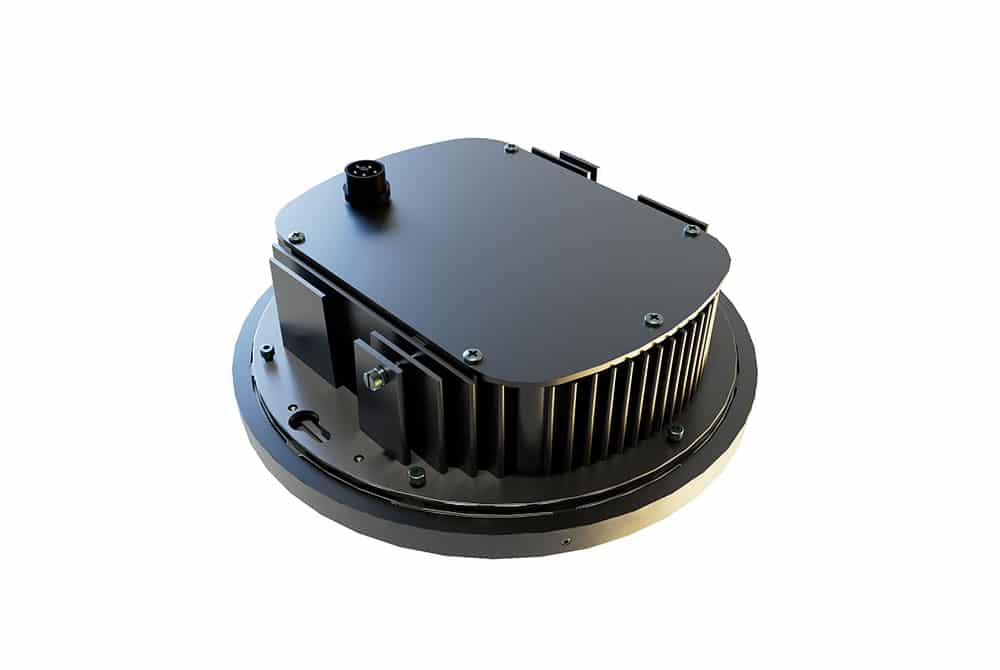

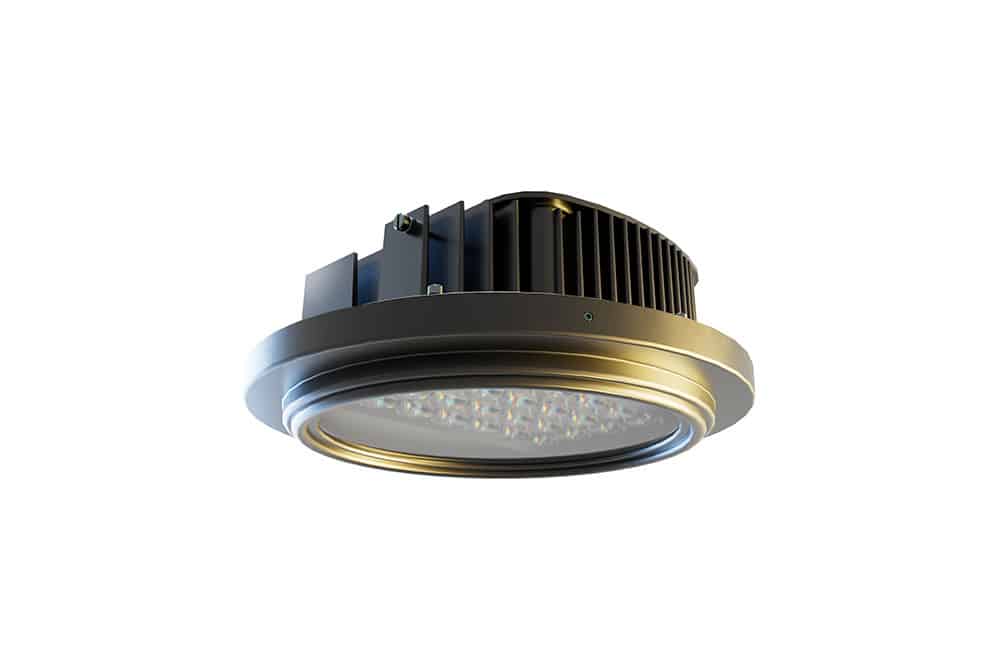

  • Die-cast aluminum LED fixture with integrated heat sink and LED driver and flat clear glass. Cable entry through fast connector.
  • Dimensions: Ø250 x 83 mm
  • Protection: IP 65 / IK 08
  • Class: I(II possible)
  • Power: 35 W
  • Outgoing flow: 3591 lm
  • Color temperature: 2200, 2700, 3000 °K
  • CRI: >70
  • ULOR: <1%
  • Lifespan (L80B10): >109 000 h
  • Driver: Pilotage DALI, 0-10 V (sur demande)
  • Number of LEDs: 30
  • Rovello

    Lighting structure in aluminum with 1 to 4 orientable bracket(s), for ambiant and functional lighting.
    Height: from 4 to 7 m.

  • Multipode

    Complete catenary lighting system made of aluminum poles between whom are drawn 3 stainless steel ropes allowing to hang up light fixtures.
    Height: from 4 to 6 m.

  • Nerello

    Aluminum lamp post for the ambient lighting of public spaces with customizable parts (head, arm…).
    Height: from 3.5 to 5 m.

  • Ceramic (Jules & Juliette)

    LED aluminum lamp post for the ambient lighting of public spaces, made of noble material (ceramic and aluminum) and customizable (2 models: Jules & Juliette, 4 dispositions).
    Height: from 3,5 to 4,5 m.

  • Mauzac

    Elegant and refined aluminum LED lamp post for ambient lighting. Rectangle Shiraz K profile with technical grooves to facilitate accessorization.
    Height: from 3.5 to 5 m.

  • Roussanne

    Aluminum lamp post for functional lighting with simple or double head.
    Height: from 5 to 12 m.

  • Marsanne (wall-Mounted)

    Monobloc wall-mounted lighting systemmade of extruded aluminum, specially designed for ambient lighting.
    Outreach: from 1 to 2 m.

  • City Line

    Aluminum light pole designed to provide functional lighting and highly versatile (pole profile, number and type of arms and pole heads).
    Height: from 4 to 12 m.

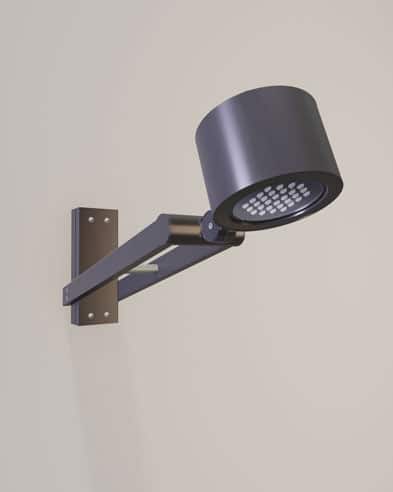

  • Mauzac (wall-mounted)

    Elegant wall-mounted lighting system for ambient lighting, made of 2 connected aluminum arms.
    Outreach: 1m.

  • Nerello (wall-mounted)

    Wall-mounted lighting system with contemporary silhouette.
    Outreach: 0,8 m.

  • Roussanne (wall-mounted)

    Aluminum wall-mounted lighting system for functional lighting.
    Height: 0,5 m, 1 m or 1,5 m.

  • Roussanne (Variation)

    Lighting pole with single, double or quadruple open-work aluminum arm, designed for ambient or functional lighting.
    Height: from 5 to 12 m.

  • Techni-Tram

    Aluminum pole whose patented design demonstrates originality, lightness and transparency.
    Height: from 5 to 12 m.
