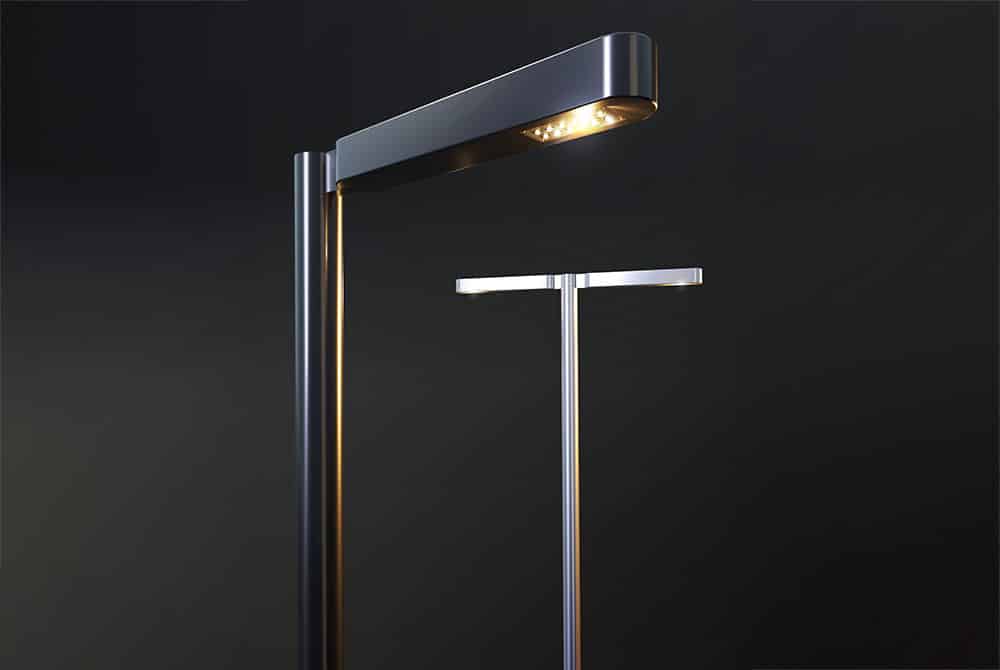

Aubin, new urban lighting! The modularity, efficiency and timeless aesthetics of this range will elegantly fit with all types of public spaces.
Efficient, the Aubin range is equipped with the new Bômino LED luminaire, from Technilum, which offers precise, energy-saving, programmable and dimmable lighting, adapted to uses.
Modular, Aubin is available in many configurations to ensure aesthetic continuity within the public space:
. 2 profile types: flush tube or Structure K with technical grooves for easy accessorization
. 3 different arm lengths
. 2 types of finishes: monochrome or two-tone
. Single, double, pedestrian-lighting, triple, sextuple… but also catenary or wall mounted, and bollard.
. 2 types of fasteners: side and top-mounted
Height From 4 to 8 m (from 13′ 1 31/64″ to 13′ 1 15/32″)
Technical data
- Adaptable with extruded Lisse or Structure K cylindrical poles. Smooth or with technical grooves for accessorization. Fully weld-free aluminum construction to avoid any weakness point.
- Mast profile: Structure K 120, Structure K 140, Structure K 160, Lisse 120, Lisse 140, Lisse 160
- Profile dimension: ⌀ 120, 140, 160 (⌀ 4 3/4″, 5 1/2″, 6 5/16″)
- Access door made from a specific aluminum profile. Flush, interchangeable. Opening 500×76, 500×90 mm, 500×100 mm.
Opening at 600 mm from the base (other height on demand). Locked with tamper-proof screw. - Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
- . Single, double, triple… up to sextuple
. Aluminium profile bracket, rectangular section 100 x 120 mm.
. Terminated in die cast aluminum.
. Length 0.50, 0.80, 1m. - Number of arms: 1 – 6
- Possible to add a pedestrian lighting (Technifonction)
- Standard outreach: 0,5 m, 0,8m, 1m (2′ 7 31/64″, 2′ 7 31/64″, 3′ 3 23/64″)
- . Two color finishes: monochrome or two-tone.
. Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
Bômino (LED luminaire to integrate)25 W.
3250 lm
1800, 2200, 2700, 3000, 4000 °K
