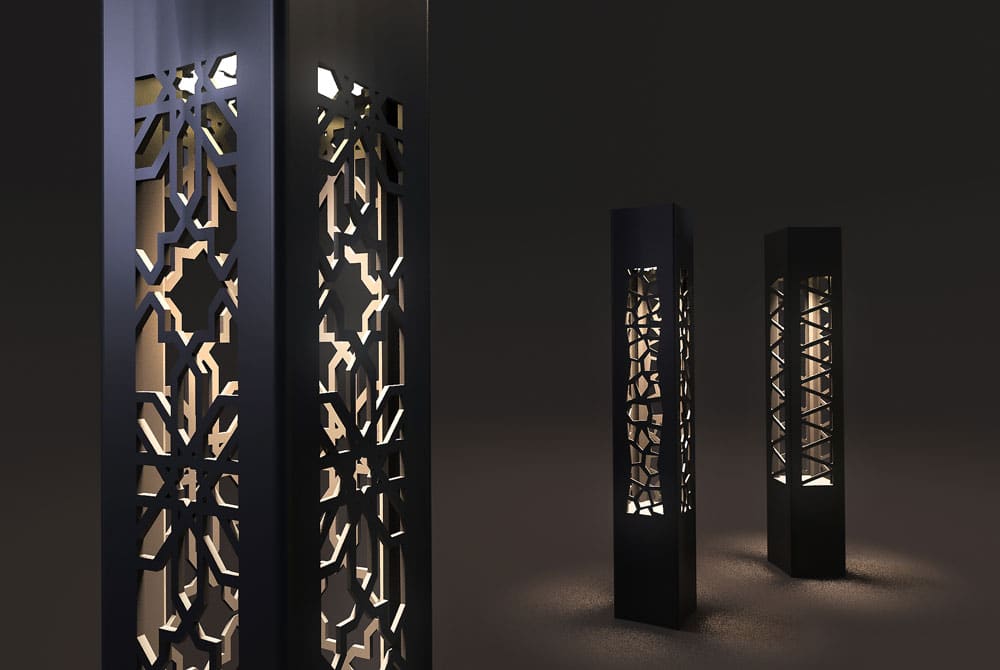

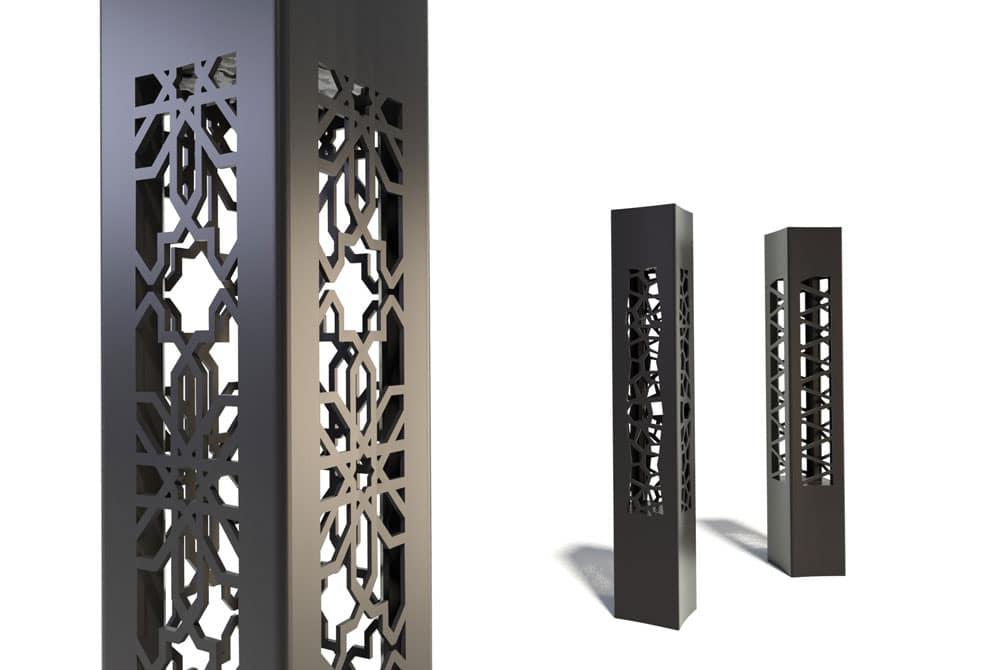

Treille takes its name (trellis) from its fretted aluminum structure. The internal lighting enhances the model with a distinctive look, giving off a cascading light effect. Treille is available as an illuminating column or bollard, perfect for ambient or decorative lighting. Download our cutting patterns collectionDownload data sheet
Height from 1 to 1.4 m (from 3′ 3 3/8″ to 4′ 7 1/8″)
- Exclusive concave square aluminum profile with internal structure. Fretted on 4 sides.
- Mast profile: Creille
- Profile dimension: 177 x 177 mm (7″ x 7″)
- Access door available upon request.
- Extra-flat baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
- Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
- Source: LED
- LED luminaire with integrated LED driver and heat sink. 16 LEDs lighting.
- Module type: VSL
- Luminaire dimension: 120x120x60 mm (4 3/4″ x 4 3/4″ x 2 3/8″)
- Power: 16 W
- Outgoing flow: 2170 – 2315 lm
- Lighting efficiency: 141 lm/W
- Color temperature: 3000 K, 4000 K
- CRI >70
- Optic: Asymmetrical
- Protection: IP 66 / IK 05
- Operating temperature: -20° C / +50°C (-4°F / 122°F)
- Class: 1 (2 possible)
- Programmable, dimmable (DALI) or not dimmable
- Power supply: 220 V
- DEL intensity: 350, 700 mA
