Creille GM

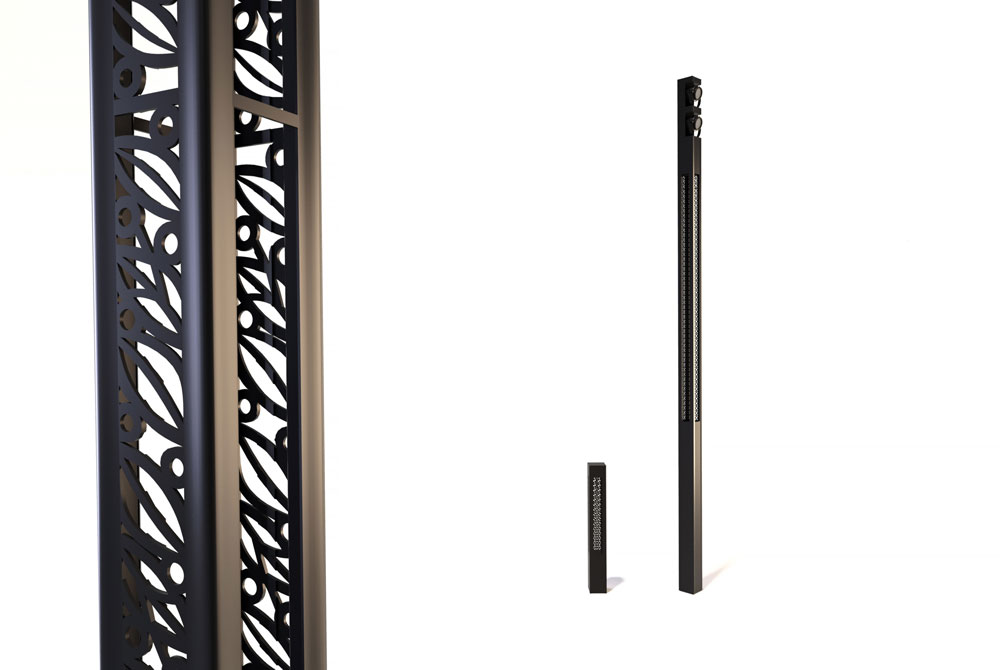

  • D_Creille-GM_jour

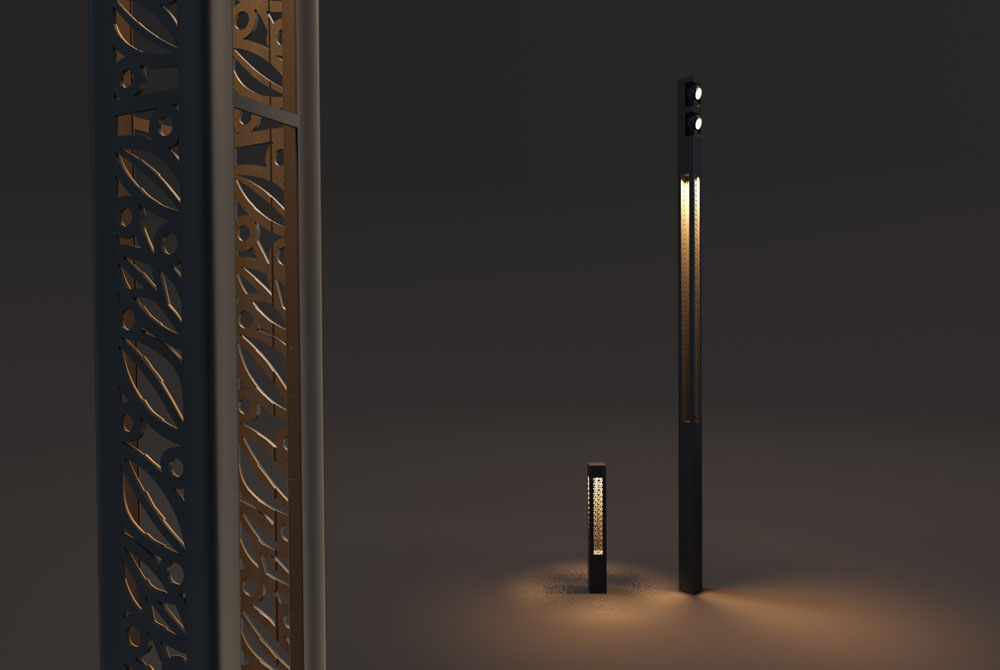

  • D_Creille-GM_nuit

Creille GM is a fretted aluminum illuminating column, perfect for ambient lighting. The pattern can be entirely personalized.

Download our cutting patterns collection

Height from 3.5 to 6 m (from 11′ 5 51/64″ to 19′ 8 7/32″)

Technical data

  • Exclusive aluminum profile. Functional internal structure. Concave square section. Fretted on 4 sides from 1m20 up to 30 cm from the top. Maximum fretted height : 2m50. Possible variation: opening(s) in the upper part to add extra floodlight.
  • Mast profile: Creille GM
  • Profile dimension: 199 x 199 mm (7 13/16″ x 7 13/16″)
  • Access door made from a dedicated aluminum profile. Passage 500×76 mm at 600 mm from the ground. Enables acces to the electrical connecting box.
  • Extra-flat die-cast aluminum baseplate. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
  • Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
  • Source: LED
  • LED luminaire with integrated LED driver and heat sink. 16 LEDs lighting.
  • Module type: VSL
  • Luminaire dimension: 120x120x60 mm (4 3/4″ x 4 3/4″ x 2 3/8″)
  • Power: 16 W, 33 W
  • Outgoing flow: 2170 – 4380 lm
  • Lighting efficiency: 136 – 141 lm/W
  • Color temperature: 3000 K, 4000 K
  • CRI >70
  • Optic: Symmetrical, Asymmetrical
  • Protection: IP 66 / IK 05
  • Operating temperature: -20° C / +50°C (-4°F / 122°F)
  • Class: 1 (2 possible)
  • Programmable, dimmable (DALI) or not dimmable
  • Power supply: 220 V
  • DEL intensity: 350, 700 mA
