Manseng PM

  • D_Manseng-PM
  • D_Manseng-PM-nuit

Manseng PM is part of the Manseng range of poles, lampposts, bollards and floodlight supports, sober and functional.

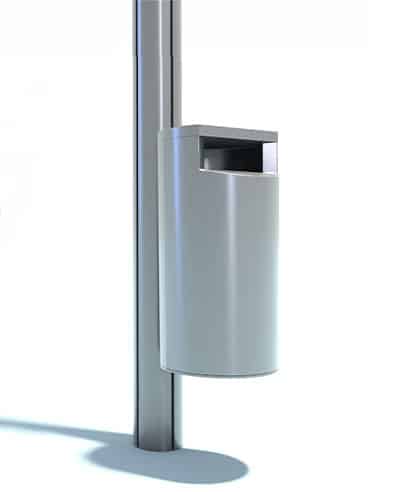

Supporting any kind of light fixture or any accessories (signage, litter garbage can, camera…), their position can be adjusted precisely and easily in height thanks to the technical grooves integrated to the pole.
Manseng PM is available with bracket(s) integrating a LED luminaire or without bracket. Made of 75% recycled aluminum, completely seamless, it combines design, robustness and sustainability.

Height from 4 to 12 m (from 13′ 1 31/64 à 39’4 7/16)

Technical data

  • Exclusive square aluminum profile with functional internal structure and functional external grooves.
  • Mast profile: Manseng PM
  • Profile dimension: 180 x 180 mm (7 5/64″ x 7 5/64″)
  • Access door made from a specific aluminum profile. Flush, interchangeable. Opening 500×140 mm (19 11/16″ x 5 1/2″) at 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw.
  • Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
  • smart in site logo
  • Bracket made in the same profile as the pole offering perfect harmony. Simple or double mast head.
  • Number of arms: 1-4
  • Standard outreach: From 0.8m to 1m (from 2′ 7 31/64″ to 3′ 3 23/64″)
  • Tilt: 0°-20°
  • Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
  • Source: LED
  • LED luminaire fitted in the arm. Body made of die-cast aluminum, integrated LED driver and heat sink. Optical prism reflecting light. 16 LEDs lighting.

    Also available in floodlights support with fixation on the technical grooves with the help of a mounting bracket (for example Technilum’s universal mounting bracket).
    Compatible with our Paul and Paulette floodlights.
  • Module type: Kareo
  • Luminaire dimension: 90 x 90x 60mm (3 17/32″ x 3 17/32″ x 2 23/64″)
  • Power: 16W, 32W
  • Outgoing flow: 2385 lm, 4480 lm
  • Lighting efficiency: 136 lm/W
  • Color temperature: 2200, 2700, 3000, 4000 °K
  • CRI >70
  • Optic: Symmetrical, Asymmetrical
  • Protection: IP 65 / IK 08
  • Class: 1 (2 possible)
  • Programmable, dimmable (DALI or 0-10 V) (upon request)
  • DEL intensity: 8, 16, 25 ou 33W Leds
  • CE certification logo
  • US UL certification logo
  • rohs certification logo
