Mauzac (wall-mounted)

  • D_Photometry_Magic

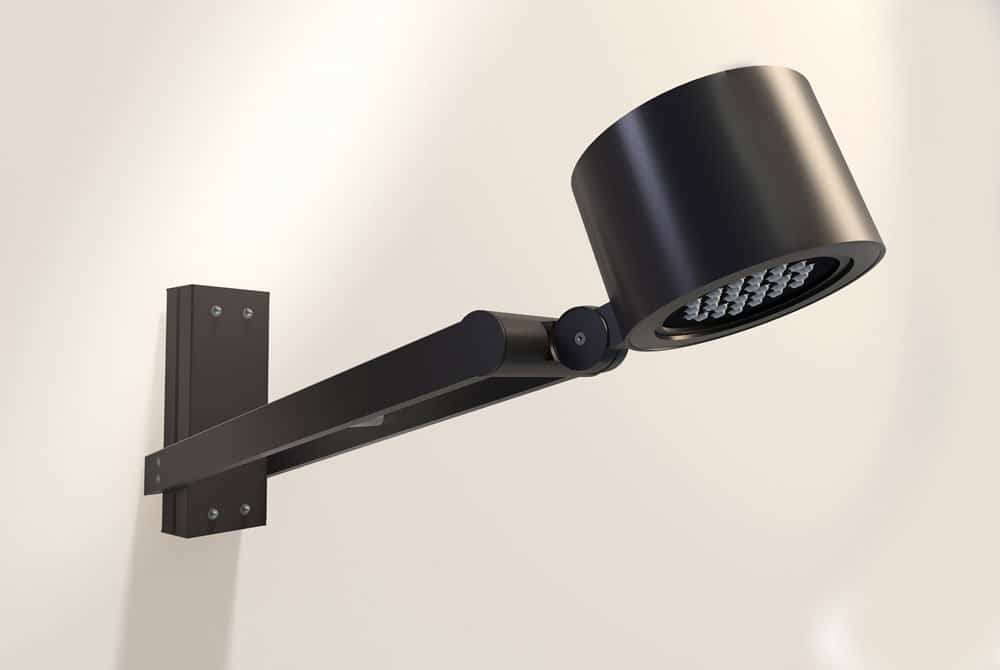

  • D_applique-Mauzac-jour

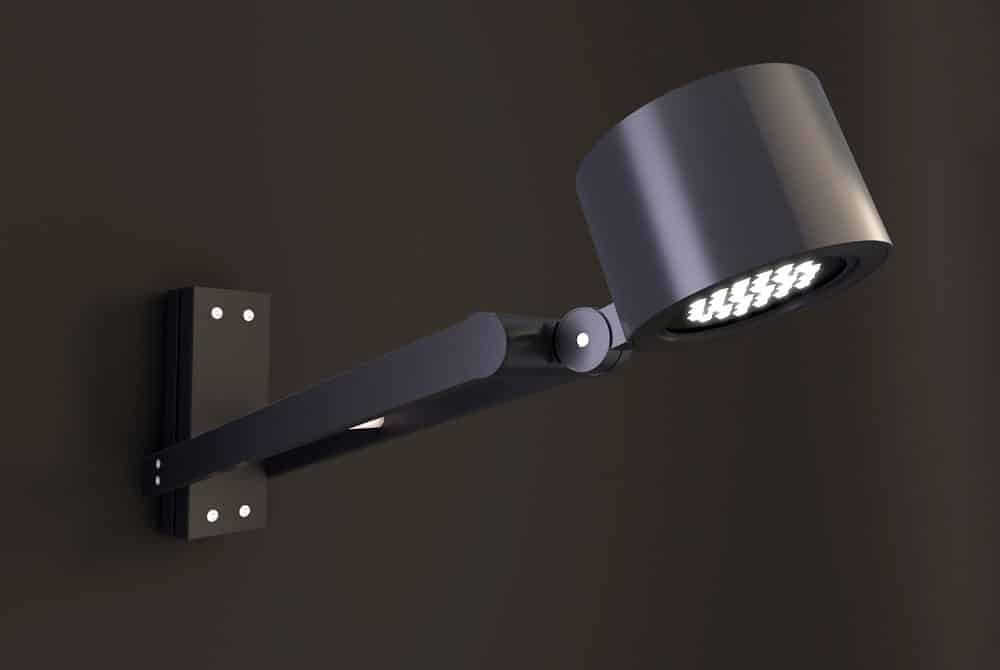

  • D_applique-Mauzac-nuit

Mauzac relates to interior architectural lightings. Its refined aesthetics brings elegance and fineness to this object. Designed for external ambient and decorative lighting of public spaces, Mauzac is equipped with an LED fixture, with extended life-span, reduced energy consumption and easy maintenance.

Download data sheet

Technical data

  • Assembly of 2 arms made of rectangular section aluminum profile. Fixture mounted to the arm through an articulation to allow on-site adjustment of the tilt.
  • Standard outreach: 1 m (or 3′ 3 3/8″)
  • Tilt: 0-15°
  • Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
  • Source: LED
  • LED luminaire fitted in the arm. Body made of die-cast aluminum, integrated LED driver and heat sink. Extra clear flat glass. 30 Leds lighting on aluminum PcB. Optical prism on each Led, different light distribution available..
  • Module type: Magic
  • Luminaire dimension: 250×83 mm (9 13/16″ x 3 1/4)
  • Power: 35 W
  • Outgoing flow: 3450 – 3592 lm
  • Lighting efficiency: 99 – 101 lm/W
  • Color temperature: 3000 K, 4000 K
  • CRI >70 (>80 possible)
  • Optic: Asymmetrical wide beam, Symmetrical, Asymmetrical
  • Protection: IP 65 / IK 08
  • Class: 1 (2 possible)
  • Programmable, dimmable (DALI or 0-10 V) or not dimmable
  • DEL intensity: 700 mA
