Mikado PM

  • D_Mikado-PM_jour
  • D_Mikado-PM_nuit

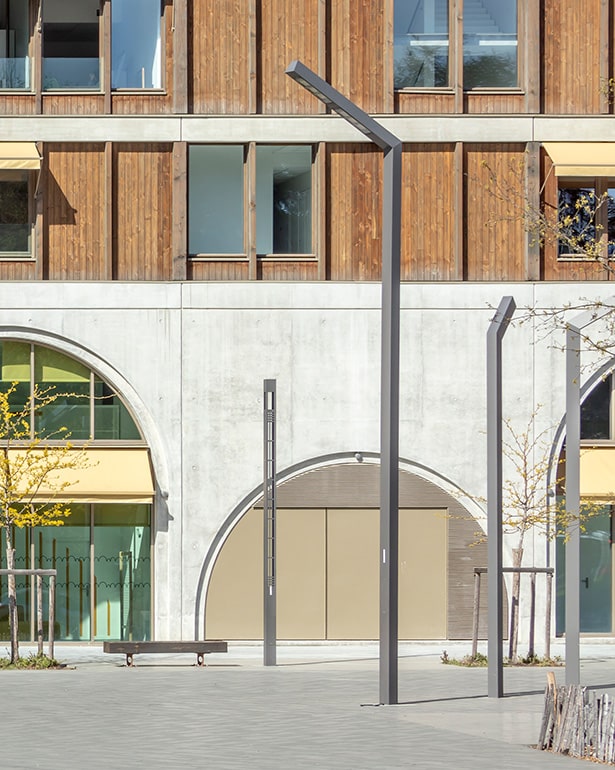

Technilum’s icon Mikado has become a must have in qualitative urban projects. Reknowned for its unique trapezoidal profile, it can be arranged in alignments or in cluster. Made of extruded aluminum, entirely weld-free (City Module concept) Mikado is available in different heights, to suit all illumination configurations.

Height from 4 to 9 m (from 13′ 1 31/64″ to 29′ 6 21/64″)

Technical data

  • Exclusive trapezoidal aluminum profile with internal structure.
  • Mast profile: Trapeze PM
  • Profile dimension: 210 x 180 x 140 mm (8 1/4″ x 7 1/16″ x 5 1/2″)
  • Access door made from a specific aluminum profile. Flush, interchangeable. Opening 500×128 mm (19 11/16″ x 5 11/16) at 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw.
  • Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
  • Simple. One piece, made in the same profile as the pole, offering perfect harmony.
  • Number of arms: 1
  • Standard outreach: 1 m (or 3′ 3 3/8″)
  • Tilt: 0°, 5°, 10°, 15°
  • Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
  • Source: LED
  • LED luminaire fitted in the arm. Body made of die-cast aluminum, integrated LED driver and heat sink. Extra clear flat glass. 48 to 72 LEDs lighting.
  • Module type: Tempranillo
  • Luminaire dimension: 670x180x100 mm (26 3/8″ x 7 1/16″ x 3 15/16″)
  • Power: 48 W, 72 W, 96 W
  • Outgoing flow: 5280 – 10630 lm
  • Lighting efficiency: 110 lm/W
  • Color temperature: 3000 K, 4000 K
  • CRI >80
  • Optic: Asymmetrical wide beam, Asymmetrical
  • Protection: IP 65 / IK 08
  • Class: 1 (2 possible)
  • Programmable, dimmable (DALI or 0-10 V) or not dimmable
  • Power supply: 120-277 V
  • DEL intensity: 350 – 440 mA
