Rovello

  • D_Rovello-Nuit
  • D_Rovello-jour

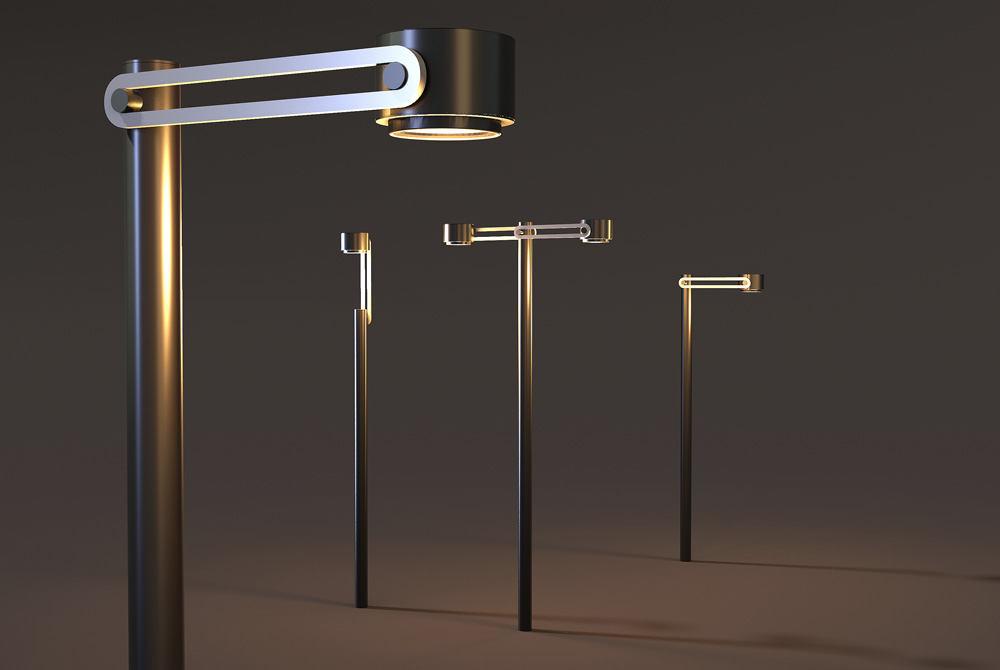

The design of Rovello is both contemporary and astute: it allows to easily adapt the orientation of the lighting, thanks to or independently from ots orientable bracket(s). Equipped with an integrated LED luminaire (Magic®, by Technilum), the mast of this lighting structure can be either smooth or with external technical grooves facilitating the mounting of accessories.

Download data sheet

Height 4 to 7 m (13′ 1 15⁄32″ to 22′ 11 19⁄32″)

Technical data

  • Exclusive aluminum profile, cylindrical, smooth or equipped with external technical grooves to facilitate the mounting of accessories
  • Mast profile: Structure K 120, Structure K 140, Lisse 120, Lisse 140
  • Profile dimension: ⌀ 120, 140 mm (⌀ 4 3/4″, 5 1/2″)
  • Access door manufactured in a specific aluminum profile. Interchangeable, flush. Opening depending on the profile dimension at 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw.
  • Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
  • Single, double triple or quadruple bracket, cut-out aluminum, with adjustable tilt
  • Number of arms: 1, 2, 3, 4
  • Standard outreach: 0,8 m (ou 2′ 7 1/2″)
  • Tilt: 0, 10, 20
  • Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
  • Source: LED
  • LED luminaire fitted in the arm. Body made of die-cast aluminum, integrated LED driver and heat sink. Extra clear flat glass. 30 Leds lighting on aluminum PcB. Optical prism on each Led, different light distribution available.
  • Module type: Magic
  • Luminaire dimension: 250×83 mm (9 13/16″ x 3 1/4)
  • Power: 35 W
  • Outgoing flow: 3591 lm (3000°K)
  • Color temperature: 2200, 2700, 3000, 4000°K
  • CRI >70 (>80 possible)
  • Optic: Symmetrical, Asymmetrical
  • Protection: IP 65 / IK 08
  • Class: 1 (2 possible)
  • Programmable, dimmable (DALI or 0-10 V) or not dimmable
  • DEL intensity: 700 mA
