Shiraz Nano (bollard)

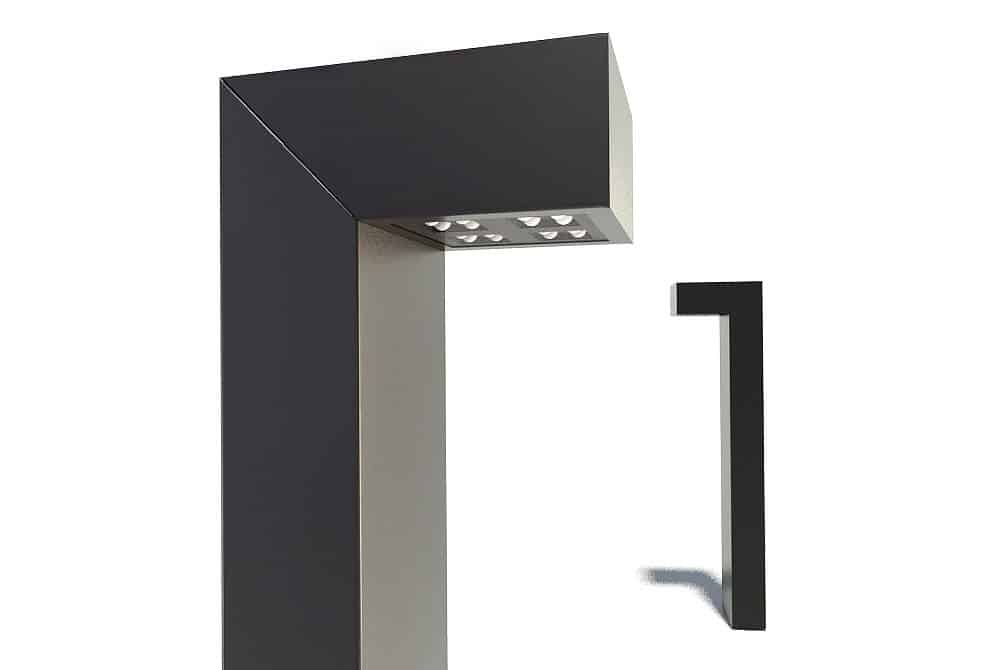

  • D_Shiraz-Nano_Borne-jour

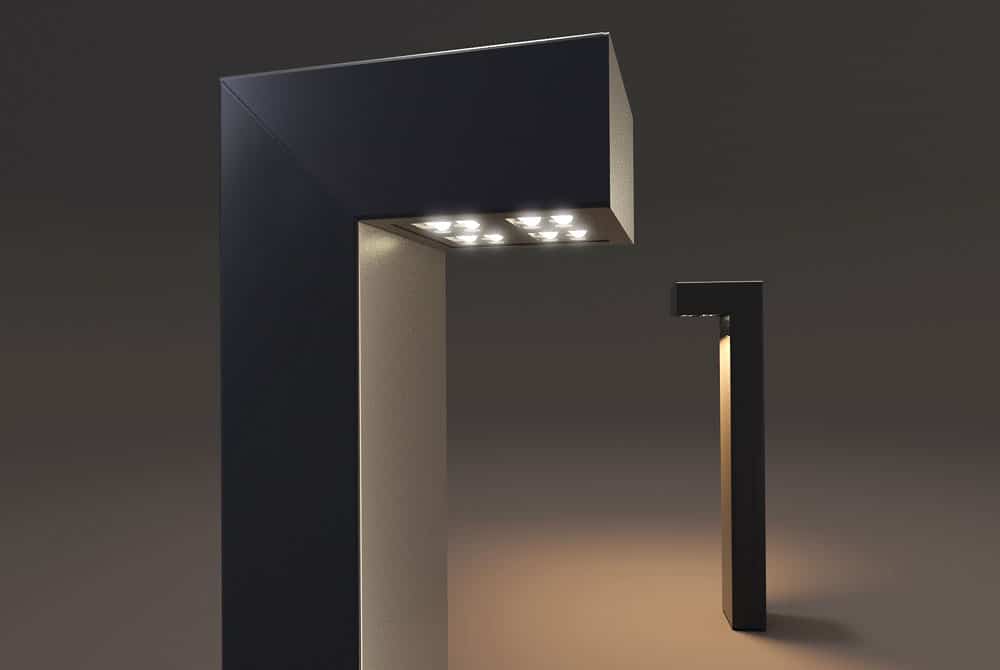

  • D_Shiraz-Nano_Borne-nuit

Shiraz Nano bollard benefits from the contemporary and refined design that made the success of Shiraz product line. It perfectly fit in any kind of urban environment. Equipped with LEDs, Imawa contributes to reduce environmental footprint thanks to its extended life-span, reduced energy consumption and easy maintenance.

Height from 0.8 to 1.20 m (from 2′ 7 1⁄2″ to 3′ 11 1⁄4″)

Technical data

  • Exclusive rectangular aluminum profile with internal structure.
  • Mast profile: Shiraz Nano
  • Profile dimension: 158 x 95 mm (6 1/4″ x 3 3/4″)
  • Access door available upon request.
  • Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
  • Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
  • Source: LED
  • LED luminaire with integrated LED driver and heat sink. 16 LEDs lighting.
  • Module type: VSL
  • Luminaire dimension: 120x120x60 mm (4 3/4″ x 4 3/4″ x 2 3/8″)
  • Power: 16 W
  • Outgoing flow: 2170 – 2315 lm
  • Lighting efficiency: 141 lm/W
  • Color temperature: 3000 K, 4000 K
  • CRI >70
  • Optic: Asymmetrical
  • Protection: IP 66 / IK 05
  • Operating temperature: -20° C / +50°C (-4°F / 122°F)
  • Class: 1 (2 possible)
  • Programmable, dimmable (DALI) or not dimmable
  • Power supply: 220 V
  • DEL intensity: 350, 700 mA
