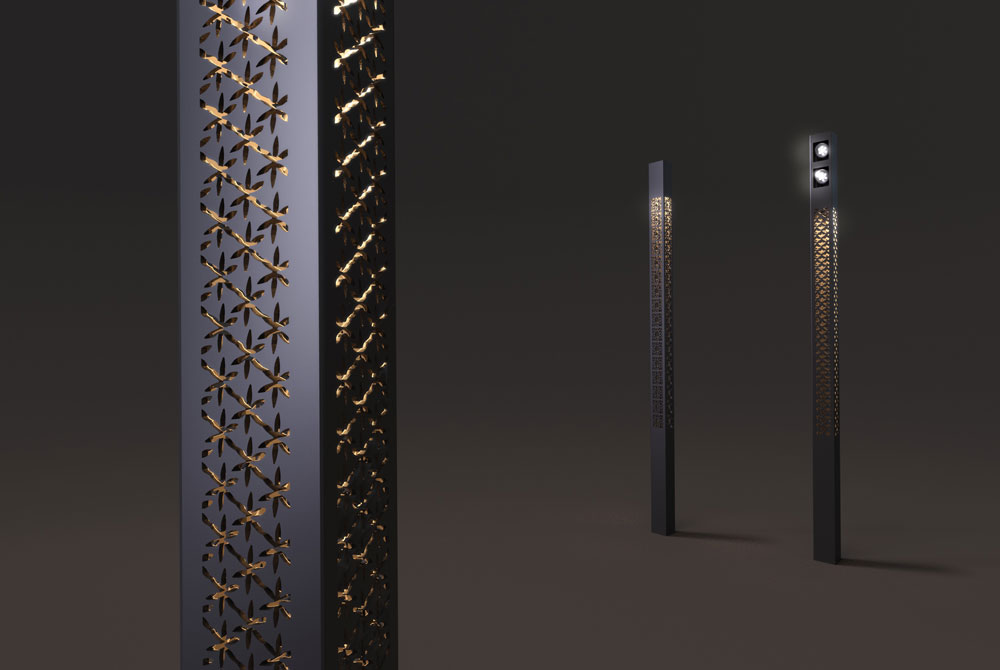

Treille takes its name (trellis) from its fretted aluminum structure. The customizable pattern and the internal illumination enhances the model with a distinctive look, giving off a cascading light effect. The practical side is that the light source is conveniently protected. Download data sheet
Height from 3.5 to 4.8 m (from 11′ 5 51/64″ to 15′ 8 31/32″)
Technical data

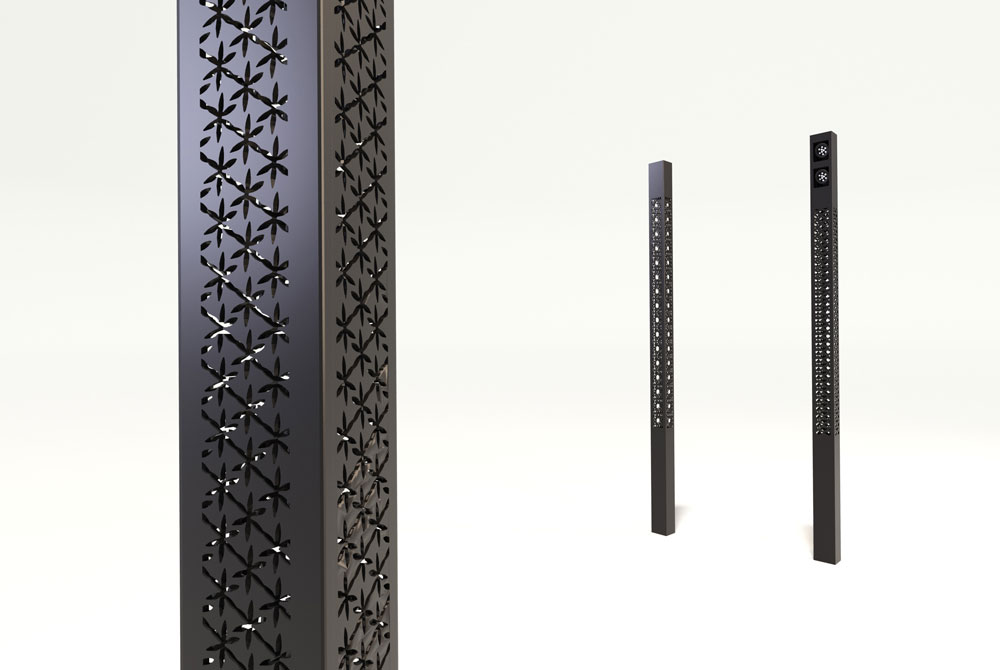

- Exclusive trapezoidal aluminum profile with internal structure. Fretted on 4 sides from 1m20 up to 30 cm from the top. Maximum cut out height: 3m80. Possible variation: openning(s) in the upper body to add extra floodlight.
- Mast profile: Trapeze PM
- Profile dimension: 210 x 180 x 140 mm (8 1/4″ x 7 1/16″ x 5 1/2″)

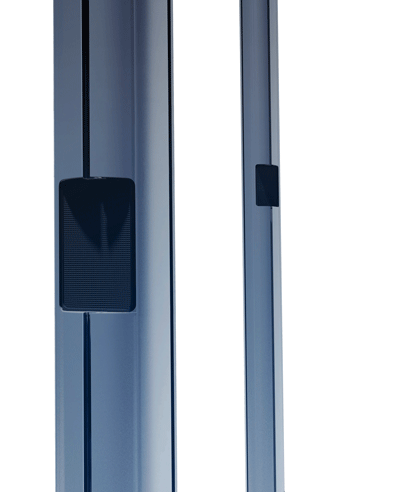

- Access door made from a specific aluminum profile. Flush, interchangeable. Opening 500×128 mm (19 11/16″ x 5 11/16) at 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw.
- Extra-flat baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
- Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
- Source: LED

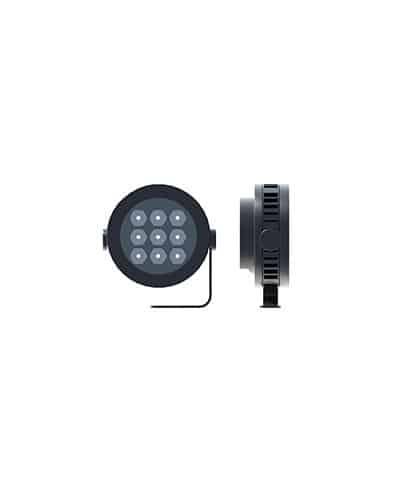

- LED luminaire with integrated LED driver and heat sink. 16 LEDs lighting. Upon request: additional floodlight on top.
- Module type: Kareo
- Power: 16 W, 33 W
- Outgoing flow: 2170 – 4380 lm
- Lighting efficiency: 136 – 141 lm/W
- Color temperature: 3000 K, 4000 K
- CRI >70 (>80 possible)
- Optic: Symmetrical, Asymmetrical
- Protection: IP 66 / IK 05
- Operating temperature: -20° C / +50°C (-4°F / 122°F)
- Class: 1 (2 possible)
- Programmable, dimmable (DALI) or not dimmable
- Power supply: 220 V
- DEL intensity: 350, 700 mA
