PAUL (S, M, L floodlights)

Sober and elegant, our square Paul floodlights, compatible with our entire range of our poles, lampposts and lighting columns, are available to accompany all your architectural lighting projects. Available in 3 different sizes et offering a wide color pannel (white, dynamic white and RGBW.).

Available accessories: Snoot, anti-glare grid, honey comb.

The finish of our floodlights can easily be matched to the associated lighting furniture: choose from more than 200 RAL colors and special finishes available (polyester powder coating), for a harmonious finish.

Download Paul and its accessories complete data sheet
Download RGBW data sheet

Can be mounted on catenariesDownload data sheet

Technical data

Range of aluminum square-shape floodlights, with mounting on lyre or arm, for architectural and street lighting, available in 3 differents sizes and offering a large color pannel (whites, dynamic white, RGBW).
Dimensions: S, M, L
Protection: IP 65 / IK 08
Class: I(II possible)
Power: 18 W, 24 W, 27 W, 37 W
Outgoing flow: 1500 lm, 2300 lm, 2970 lm, 3100 lm, 4165 lm
Color temperature: 2200, 2700, 3000 °K / Dynamic White (2200 – 3000 °K), RGB White
CRI: >70
ULOR: <1%
Lifespan (L80B10): >100 000 h
Driver: Pilotage DALI, DMX (sur demande)
Number of LEDs: 16, 24 ou 36

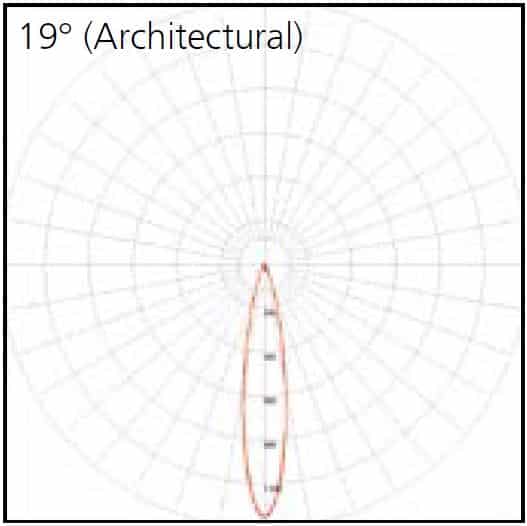

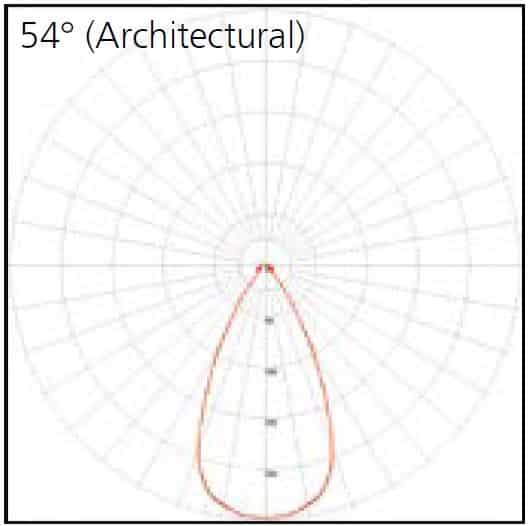

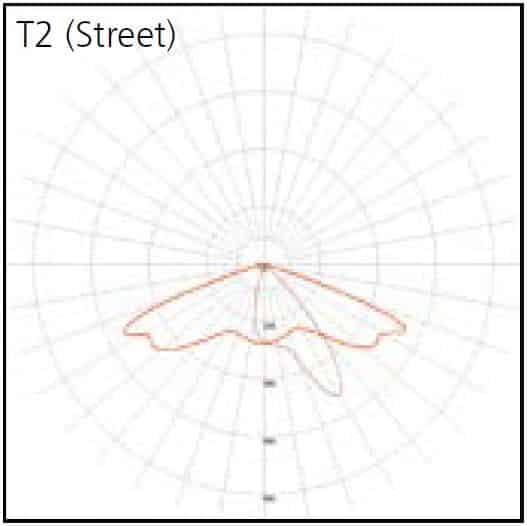

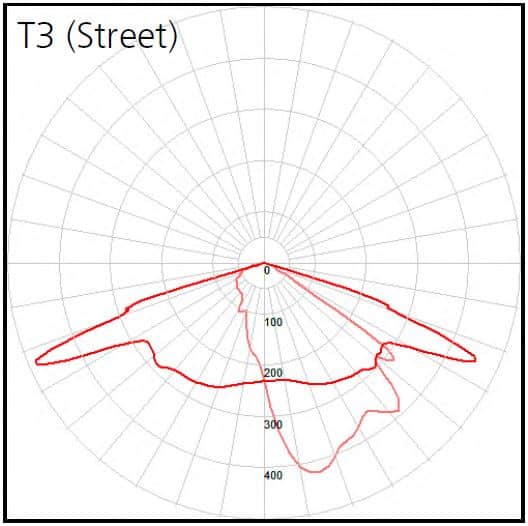

Download photometries

Manseng Nano
Aluminum lighting structure for functional and street lighting, with square profile (130 x 130 mm) integrating 4 technical groove for accessorization and mutualization.
Height: from 4 to 12 m.
Manseng PM
Aluminum lighting structure for functional and street lighting, with square profile (180 x 180 mm) integrating 2 technical groove for accessorization and mutualization.
Height: from 4 to 12 m.
Aiguille
Tapered aluminum pole for floodlight mounting, perfect for architectural and event lighting.
Heights: from 4.2 to 13.9 m.
Creille
Fretted aluminum illuminating column with square-concave profile and entirely customizable cut-out, ideal for ambient lighting.
Height: from 3.5 to 4.8 m.
Creille that grows
Fretted aluminum illuminating column which integrates vegetation growing inside the lighting furniture.
Height: from 3.5 to 4,8 m.
Structure K
Aluminum poles range equipped with technical grooves to allow the positionning of light fixtures or accessories, for dimensional or scenographic lighting.
Height: from 4 to 20 m.
Profile dimensions: K120, K140, K160, K200, K250, K320
Structure K (high)
Aluminum poles range equipped with technical grooves to allow the positionning of light fixtures or accessories, for dimensional or scenographic lighting.
Height: from 10 to 20 m.
Jeny
LED lighting structure with triangular aluminum profile and 3 technical grooves allowing the easy set up of floodlights or accessories.
Height: from 4 to 8 m.
Creille GM
Fretted aluminum illuminating column with square-concave profile and entirely customizable cut-out, ideal for ambient lighting of walkways or park.
Height: from 3.5 to 6 m.
Specimen
Aluminum lighting structure for dimensional or scenographic lighting with a strong “industrial” identity.
Height: from 8 to 12 m.
Treille
Illuminating column with fretted aluminum structure, entirely customizable, trapeze-shaped, perfect for ambient lighting in public spaces.
Height: from 3.5 to 4.8 m.
TZ
Aluminum lighting pole, trapeze-shaped, with niche(s) for floodlight, ideal for exclusive and scenographic lighting requirements.
Height: from 9 to 12 m.
Bipode
Aluminum structure designed for dimensional and scenographic lighting, made of 2 connected poles.
Height: from 9 to 14 m.
Bermude
Aluminum pole designed for dimensional and scenographic lighting. Provided with functionnal external grooves to fix floodlights, equipment and signposting.
Height: from 5 to 8 m.
Octave
Oval aluminum light pole designed for dimensional and scenographic lighting, with 6 technical grooves to fix lighting fixtures or accessories.
Height: from 3.5 to 8 m.
Octave +
Oval aluminum light pole designed for dimensional and scenographic lighting, with 4 technical grooves to fix lighting fixtures or accessories.
Height: from 6 to 12 m.
