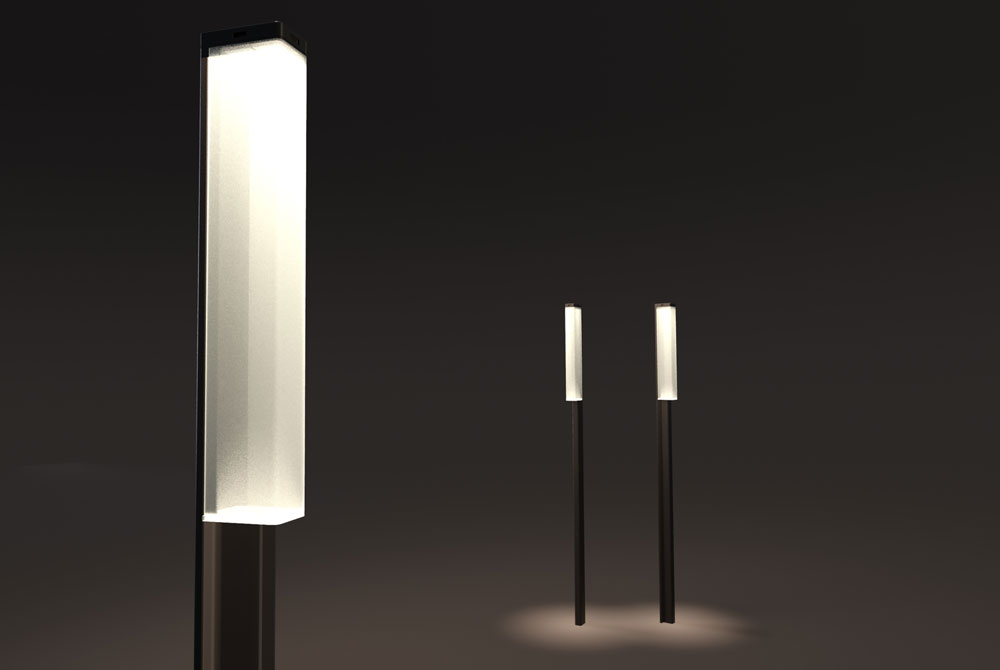

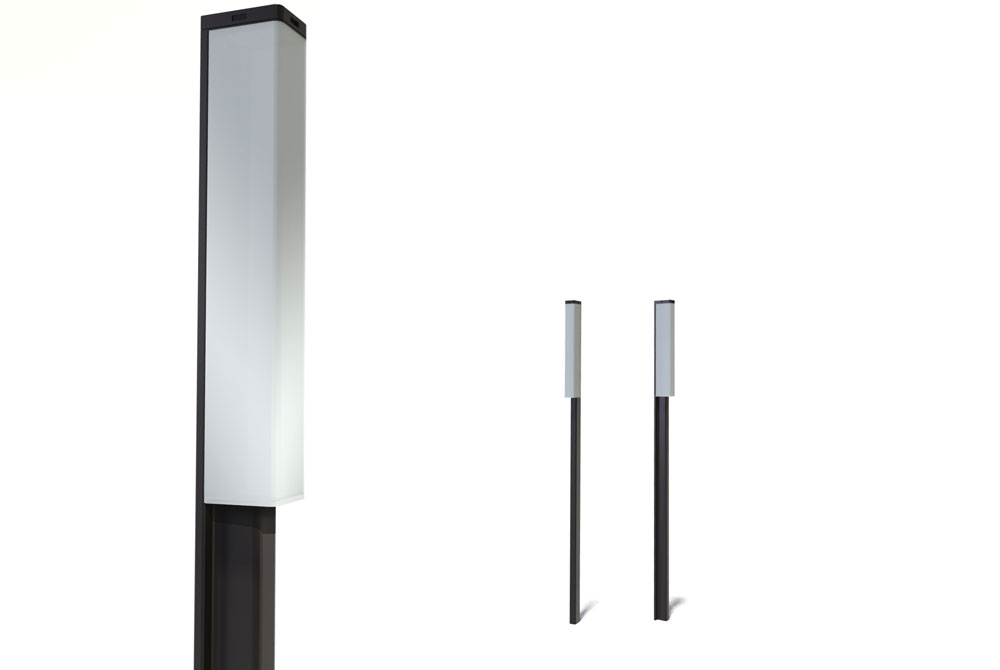

Characterized by the refinement of its lines and the balance of its forms: Imawa product range benefits from a truly contemporary design. Specially developped for ambient lighting, Imawa column will fit in any kind of urban or landscaped environment. Creation: Julien Schnell (Urbanica).Download data sheet
Height 3.5 m (11′ 5 51/64″)
Technical data
- exclusive L-shaped aluminum profile. With a recessed portion on the top, to insert the fixture.
- Mast profile: Imawa PM
- Profile dimension: 141 x 128 mm (5 9/16″ x 5 1/16″)
- Access door made from a specific aluminum profile. Flush, interchangeable. Opening 500×70 mm (19 11/16″ x 2 3/4″) à 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw.
- Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
- Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
- Programmable, dimmable (DALI or 0-10 V) or not dimmable
