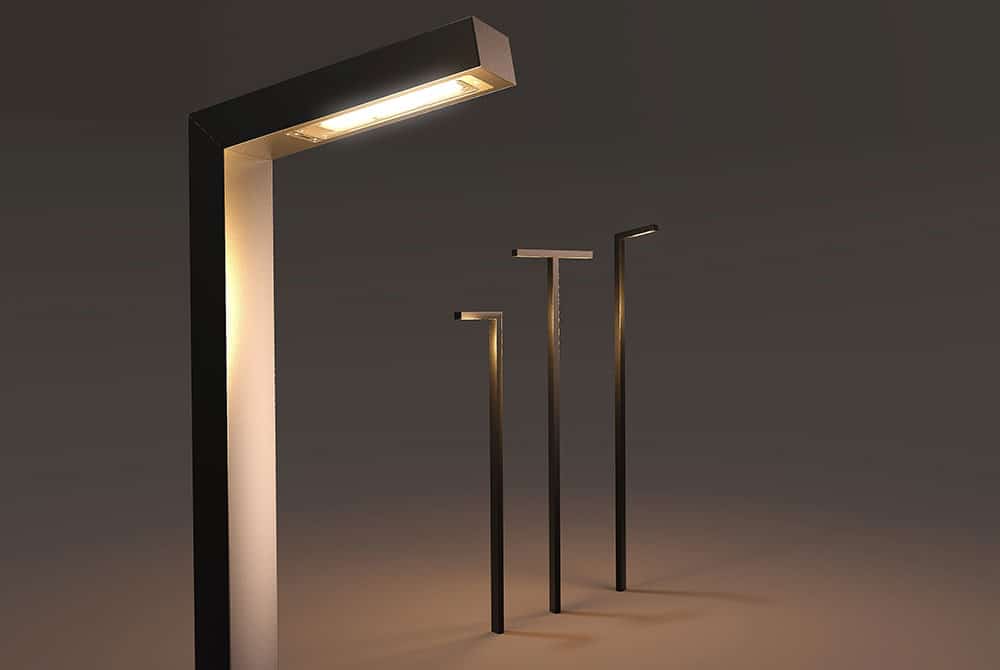

The shape of Shiraz model, definitely contemporary, has made its success. Shiraz benefits from the exclusive and patented City Module® concept and can be adjusted to different heights. It also exists as Shiraz Nano, GM, bollard and wall-mounted, to offer an harmonious continuity within the public space.
Height Shiraz Nano: from 3,5 à 5 m / Shiraz: from 4 to 8 m / Shiraz GM: from 6 to 10 m
Technical data
- Exclusive rectangular aluminum profile with functional internal structure.
- Mast profile: Shiraz, Shiraz Nano, Shiraz GM
- Profile dimension: Shiraz Nano : 158 x 95 mm / Shiraz : 200 x 120 mm / Shiraz GM : 250 x 150 mm
- Access door made from a specific aluminum profile. Flush, interchangeable. Opening Shiraz Nano and Shiraz: 500×90 mm / Shiraz GM: 500 x 128 mm at 600 mm from the base (other height on demand). Locked with tamper-proof screw.
- Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Download here the full specifications
- Number of arms: 1,2
- Possible to add a pedestrian lighting (Technifonction)
- Standard outreach: from 0,8 to 1,2m
- Tilt: 0°-20°
- Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
Tempranillo™ (LED fix. to integrate)24 W, 48 W, 72 W, 96 W.
2860 lm, 5282 lm, 8593 lm, 10566 lm
2200, 2700, 3000 °K
Bômino (LED luminaire to integrate)25 W.
3500 lm
1800, 2200, 2700, 3000, 4000 °K
Download our documents
Linked project(s)
Terry Spinks Place, London
Lucie Aubrac High School, Sommières
Kineum Tower, Göteborg
Parc en mouvement, Quimper
Show project pageModel Shiraz, Shiraz K, Shiraz (wall-mounted)
Location Quimperlé, France
Year 2017
Transport hub, Quimperlé
Railway station square, Lorient
